Step1: Product

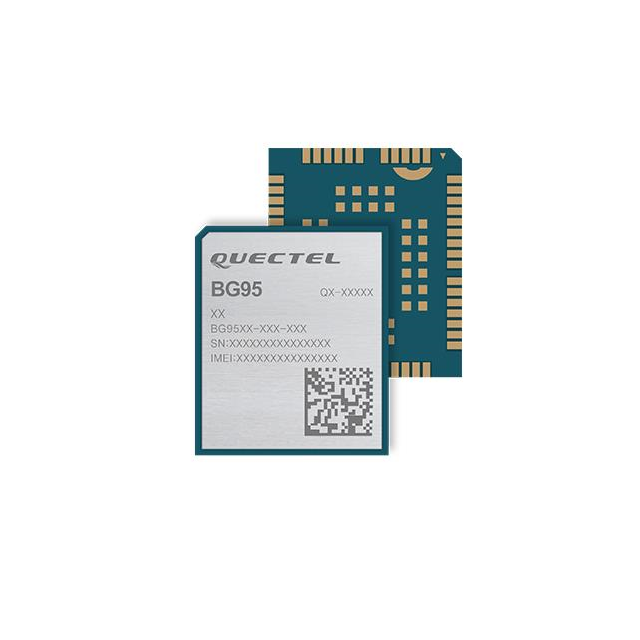

Quectel BG95M3LA-64-SGNS
Images are for reference only
Manufacturer
Manufacturer No
BG95M3LA-64-SGNS
Date Code
21+
Quantity
30
Availability
In Stock
Package
Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF TXRX MOD CELL NAV SMD
Detailed Description
Cellular, Navigation BeiDou, EGDE, Galileo, GLONASS, GPS, GNSS, GSM, LTE Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Datasheet
Payment
Delivery
Mfr
Quectel
Series
-
Protocol
BeiDou, EGDE, Galileo, GLONASS, GPS, GNSS, GSM, LTE
Data Rate
1.119Mbps
Frequency
850MHz, 900MHz, 1.8GHz, 1.9GHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Modulation
-
Memory Size
-
Sensitivity
-
Antenna Type
Antenna Not Included
Mounting Type
Surface Mount
Package / Case
Module
Power - Output
21dBm
Voltage - Supply
3.3V ~ 4.3V
Serial Interfaces
GPIO, I2C, PCM, UART, USB
RF Family/Standard
Cellular, Navigation
Utilized IC / Part
MDM9205-0
Base Product Number
BG95
Current - Receiving
1.65mA
DigiKey Programmable
Not Verified
Operating Temperature
-35°C ~ 75°C
Current - Transmitting
-
| Attribute | Value |
|---|---|
| Mfr | Quectel |
| Series | - |
| Protocol | BeiDou, EGDE, Galileo, GLONASS, GPS, GNSS, GSM, LTE |
| Data Rate | 1.119Mbps |
| Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Modulation | - |
| Memory Size | - |
| Sensitivity | - |
| Antenna Type | Antenna Not Included |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Power - Output | 21dBm |
| Voltage - Supply | 3.3V ~ 4.3V |
| Serial Interfaces | GPIO, I2C, PCM, UART, USB |
| RF Family/Standard | Cellular, Navigation |
| Utilized IC / Part | MDM9205-0 |
| Base Product Number | BG95 |
| Current - Receiving | 1.65mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -35°C ~ 75°C |
| Current - Transmitting | - |
