Step1: Product

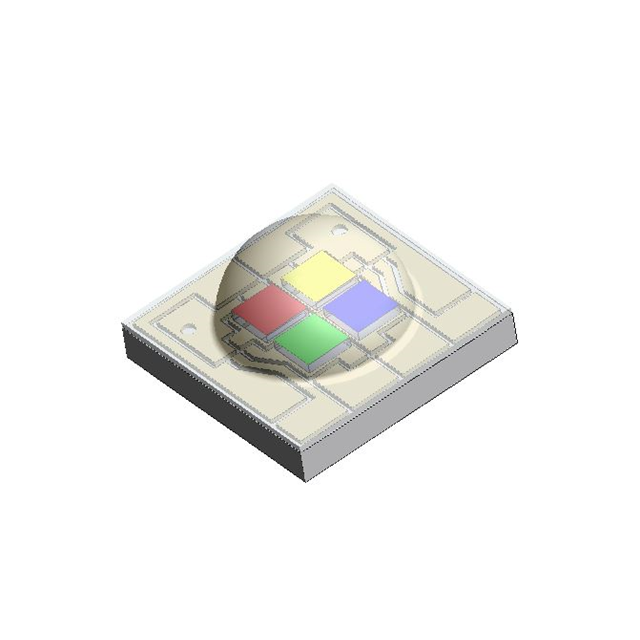

QT Brightek (QTB) QBHP684-RGBCWBU
Images are for reference only
Manufacturer
Manufacturer No
QBHP684-RGBCWBU
Availability
In Stock
Package
1414 (3535 Metric)
Packaging
Tape & Reel (TR)
Description
LED RGBW 630NM/520NM/460NM 1414
Detailed Description
LED Lighting Color High Power Red, Green, Blue, White (RGBW) 630nm Red, 520nm Green, 460nm Blue 1414 (3535 Metric)
Datasheet
Payment
Delivery
Mfr
QT Brightek (QTB)
Color
Red, Green, Blue, White (RGBW)
Series
High Power
Packaging
Tape & Reel (TR)
Wavelength
630nm Red, 520nm Green, 460nm Blue
Current - Max
350mA Red, 350mA Green, 350mA Blue, 350mA White
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
350mA Red, 350mA Green, 350mA Blue, 350mA White
Package / Case
1414 (3535 Metric)
Size / Dimension
0.136" L x 0.136" W (3.45mm x 3.45mm)
Temperature - Test
25°C
Base Product Number
QBHP684
Height - Seated (Max)
0.081" (2.05mm)
Supplier Device Package
1414
Lumens/Watt @ Current - Test
42 lm/W Red, 67 lm/W Green, 13 lm/W Blue, 179 lm/W White
Voltage - Forward (Vf) (Typ)
2.4V Red, 3.2V Green, 3.2V Blue, 3.2V White
Luminous Flux @ Current/Temperature
35lm Red, 75lm Green, 15lm Blue, 200lm Blue
| Attribute | Value |
|---|---|
| Mfr | QT Brightek (QTB) |
| Color | Red, Green, Blue, White (RGBW) |
| Series | High Power |
| Packaging | Tape & Reel (TR) |
| Wavelength | 630nm Red, 520nm Green, 460nm Blue |
| Current - Max | 350mA Red, 350mA Green, 350mA Blue, 350mA White |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 350mA Red, 350mA Green, 350mA Blue, 350mA White |
| Package / Case | 1414 (3535 Metric) |
| Size / Dimension | 0.136" L x 0.136" W (3.45mm x 3.45mm) |
| Temperature - Test | 25°C |
| Base Product Number | QBHP684 |
| Height - Seated (Max) | 0.081" (2.05mm) |
| Supplier Device Package | 1414 |
| Lumens/Watt @ Current - Test | 42 lm/W Red, 67 lm/W Green, 13 lm/W Blue, 179 lm/W White |
| Voltage - Forward (Vf) (Typ) | 2.4V Red, 3.2V Green, 3.2V Blue, 3.2V White |
| Luminous Flux @ Current/Temperature | 35lm Red, 75lm Green, 15lm Blue, 200lm Blue |
