Pulse Electronics PA1005.100NL

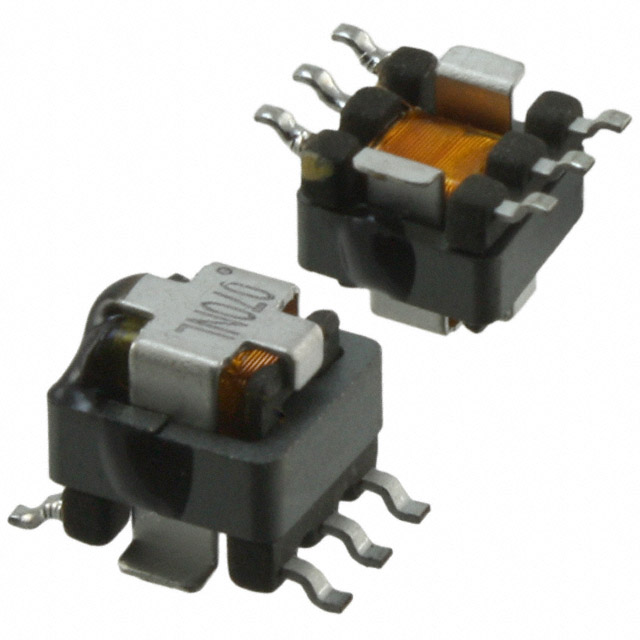

Image is only for reference
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | - |
| Weight | 0.014 oz (0.4 g) |
| Ratings | - |
| Packaging | Tray |
| Inductance | 2 mH |
| Manufacturer | Pulse Electronics |
| Current Ratio | - |
| Mounting Type | Surface Mount |
| ET (Volt-Time) | - |
| Frequency Range | 50kHz ~ 1MHz |
| Size / Dimension | 0.284" L x 0.330" W (7.21mm x 8.38mm) |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.75mOhm Primary, 5.5Ohm Secondary |
| Current Rating (Amps) | 20 A |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Turns Ratio - Primary:Secondary | 1:100 |
