Step1: Product

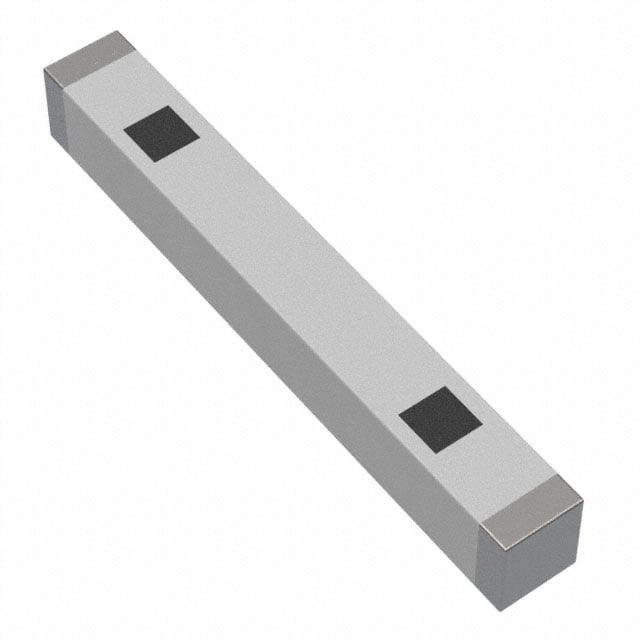

Pulse Electronics ANT8010LL05R1516A
Images are for reference only
Manufacturer
Manufacturer No
ANT8010LL05R1516A
Quantity
105
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF ANT 1.575GHZ/1.602GHZ CHIP
Detailed Description
RF ANTENNA Galileo, GLONASS, GPS Chip Solder Surface Mount
Datasheet
Payment
Delivery
Gain
1.53dBi, 1.69dBi
VSWR
-
Series
8010
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Power - Max
1 W
Return Loss
10dB
Termination
Solder
Antenna Type
Chip
Applications
Galileo, GLONASS, GPS
Height (Max)
0.039" (1.00mm)
Manufacturer
Pulse Electronics
Mounting Type
Surface Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
-
Number of Bands
2
Ingress Protection
-
RF Family/Standard
Navigation
Base Product Number
ANT8010
Frequency (Center/Band)
1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 1.53dBi, 1.69dBi |
| VSWR | - |
| Series | 8010 |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Power - Max | 1 W |
| Return Loss | 10dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | Galileo, GLONASS, GPS |
| Height (Max) | 0.039" (1.00mm) |
| Manufacturer | Pulse Electronics |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | - |
| Number of Bands | 2 |
| Ingress Protection | - |
| RF Family/Standard | Navigation |
| Base Product Number | ANT8010 |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz |
