Step1: Product

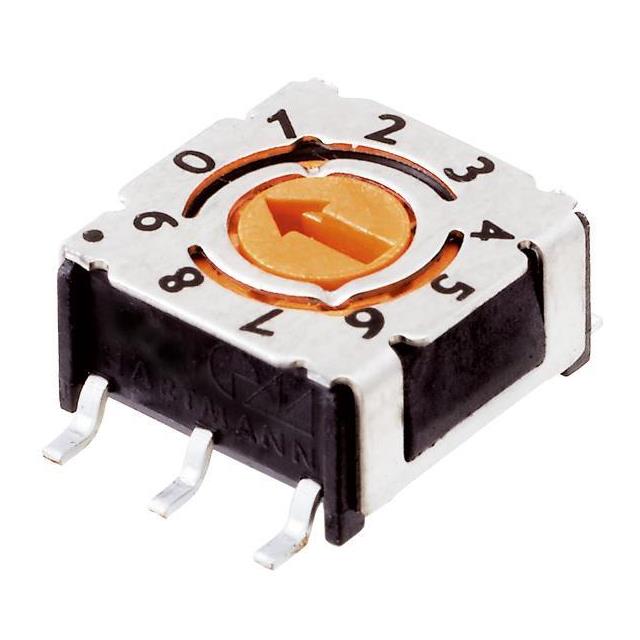

PTR Hartmann P36SMT 103
Images are for reference only
Manufacturer
Manufacturer No
P36SMT 103
Packaging
Tube
Description
SWITCH ROTARY DIP HEXADECIMAL 1
Detailed Description
Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 100mA 42VDC
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm), Full
Length
0.291" (7.40mm)
Series
P36SMT
Circuit
Hexadecimal
Features
-
Washable
Yes
Packaging
Tube
Manufacturer
PTR Hartmann
Actuator Type
Rotary for Tool
Body Material
-
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
42VDC
Electrical Life
-
Mechanical Life
25,000 Steps
Contact Material
-
Termination Style
Gull Wing
Height Above Board
0.152" (3.85mm)
Number of Positions
16
Current Rating (Amps)
100mA
Operating Temperature
-50°C ~ 125°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.291" (7.40mm) |
| Series | P36SMT |
| Circuit | Hexadecimal |
| Features | - |
| Washable | Yes |
| Packaging | Tube |
| Manufacturer | PTR Hartmann |
| Actuator Type | Rotary for Tool |
| Body Material | - |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 42VDC |
| Electrical Life | - |
| Mechanical Life | 25,000 Steps |
| Contact Material | - |
| Termination Style | Gull Wing |
| Height Above Board | 0.152" (3.85mm) |
| Number of Positions | 16 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -50°C ~ 125°C |
