Step1: Product

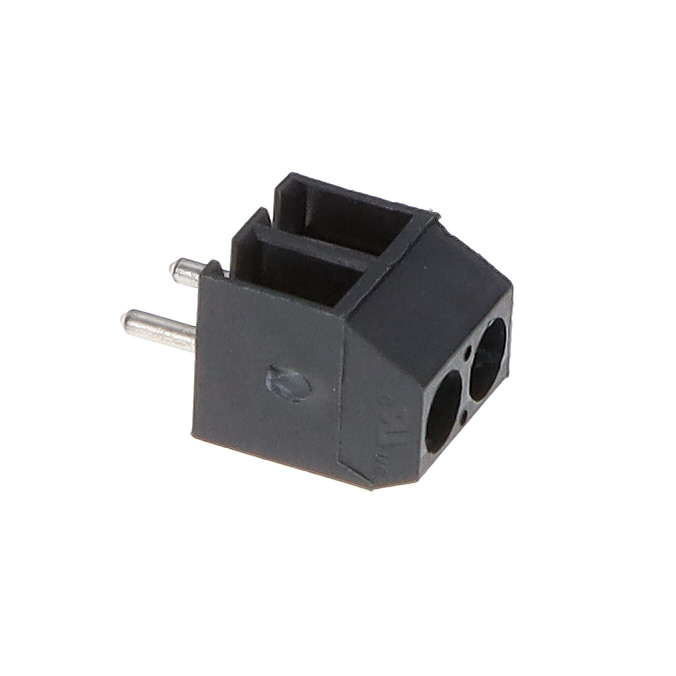

PTR Hartmann AK550/2DS-3.5-V-GREY
Images are for reference only
Manufacturer
Manufacturer No
AK550/2DS-3.5-V-GREY
Packaging
Box
Description
TERM BLK 2POS 3.5MM 0.138" VERTI
Detailed Description
2 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
Datasheet
Payment
Delivery
Color
Gray
Pitch
0.138" (3.50mm)
Series
AK550
Current
6 A
Voltage
125 V
Features
-
Packaging
Box
Wire Gauge
16-28 AWG
Manufacturer
PTR Hartmann
Screw Thread
M2
Mounting Type
Through Hole
Torque - Screw
0.25 Nm (2.2 Lb-In)
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Wire Termination
Screw - Leaf Spring, Wire Guard
Mating Orientation
Horizontal with Board
Positions Per Level
2
Operating Temperature
-40°C ~ 105°C
Clamp Material - Plating
Steel, Stainless
Screw Material - Plating
Steel
Contact Material - Plating
-
| Attribute | Value |
|---|---|
| Color | Gray |
| Pitch | 0.138" (3.50mm) |
| Series | AK550 |
| Current | 6 A |
| Voltage | 125 V |
| Features | - |
| Packaging | Box |
| Wire Gauge | 16-28 AWG |
| Manufacturer | PTR Hartmann |
| Screw Thread | M2 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.25 Nm (2.2 Lb-In) |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 2 |
| Operating Temperature | -40°C ~ 105°C |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | Steel |
| Contact Material - Plating | - |
