Step1: Product

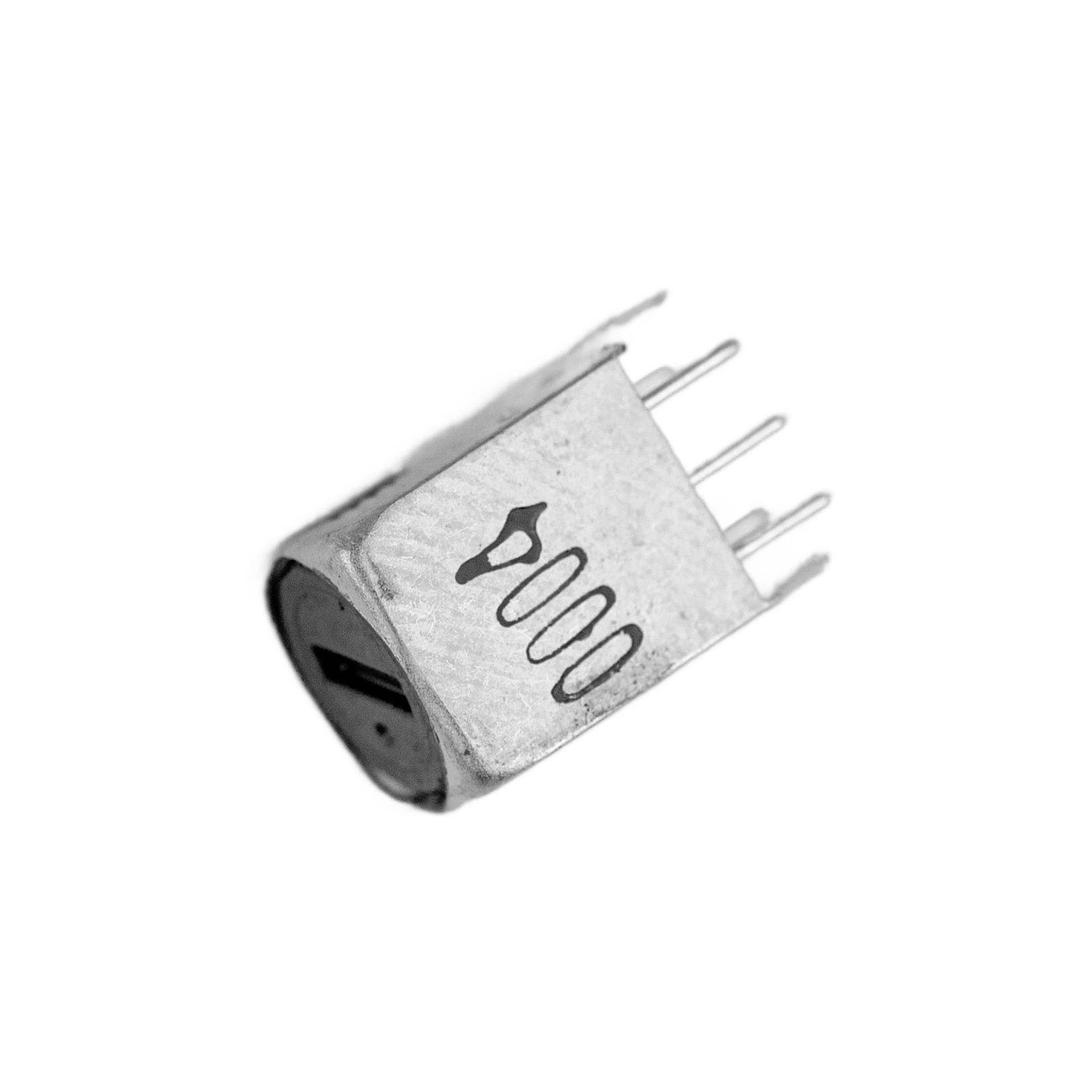

Prowave K4000005
Series
-
Weight
-
Packaging
Tray
Power Level
-
Return Loss
-
Manufacturer
Prowave
Mounting Type
Through Hole
Insertion Loss
-
Approval Agency
-
Frequency Range
125kHz
Size / Dimension
0.327" L x 0.311" W (8.30mm x 7.90mm)
Transformer Type
Impedance Matching
Termination Style
PC Pin
Frequency Response
-
Voltage - Isolation
-
Height - Seated (Max)
0.394" (10.00mm)
Operating Temperature
-40°C ~ 85°C
Impedance - Primary (Ohms)
-
Impedance - Secondary (Ohms)
-
DC Resistance (DCR) - Primary
-
DC Resistance (DCR) - Secondary
-
Turns Ratio - Primary:Secondary
1:20
| Attribute | Value |
|---|---|
| Series | - |
| Weight | - |
| Packaging | Tray |
| Power Level | - |
| Return Loss | - |
| Manufacturer | Prowave |
| Mounting Type | Through Hole |
| Insertion Loss | - |
| Approval Agency | - |
| Frequency Range | 125kHz |
| Size / Dimension | 0.327" L x 0.311" W (8.30mm x 7.90mm) |
| Transformer Type | Impedance Matching |
| Termination Style | PC Pin |
| Frequency Response | - |
| Voltage - Isolation | - |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Impedance - Primary (Ohms) | - |
| Impedance - Secondary (Ohms) | - |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Turns Ratio - Primary:Secondary | 1:20 |
