Step1: Product

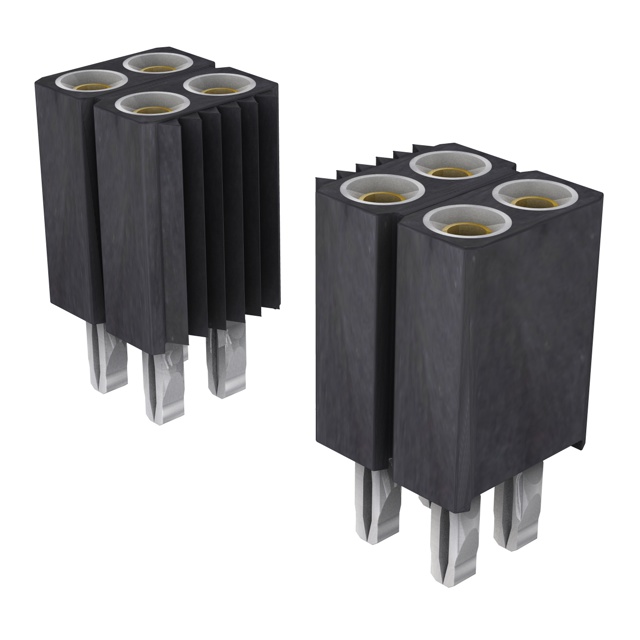

Preci-Dip 803-87-048-65-001101
Images are for reference only
Manufacturer
Manufacturer No
803-87-048-65-001101
Availability
In Stock
Packaging
Bulk
Description
CONN SOCKET 48POS 0.1 GOLD PCB
Detailed Description
48 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
Payment
Delivery
Mfr
Preci-Dip
Style
Board to Board
Series
803
Features
-
Packaging
Bulk
Termination
Press-Fit, Solder
Applications
-
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Socket
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.276" (7.00mm)
Ingress Protection
-
Base Product Number
803-87
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Number of Positions
48
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.110" (2.79mm)
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Preci-Dip |
| Style | Board to Board |
| Series | 803 |
| Features | - |
| Packaging | Bulk |
| Termination | Press-Fit, Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Socket |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.276" (7.00mm) |
| Ingress Protection | - |
| Base Product Number | 803-87 |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Number of Positions | 48 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.110" (2.79mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash |
