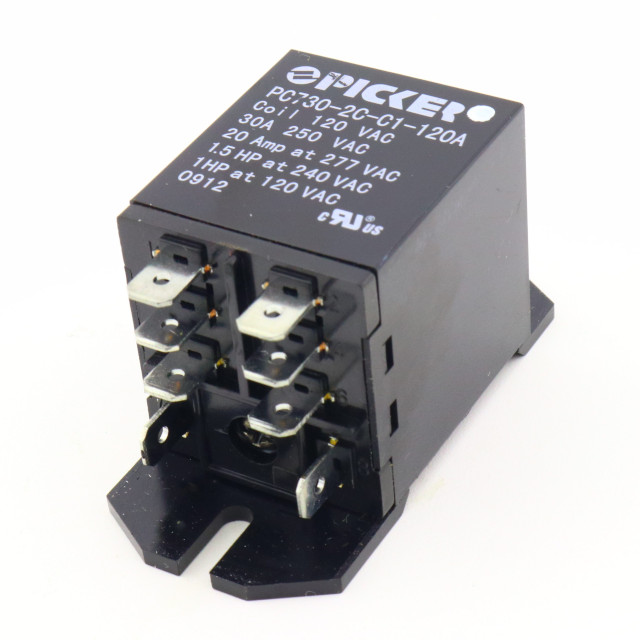

Picker Components PC730-2C-C1-120A
Images are for reference only
Manufacturer
Manufacturer No
PC730-2C-C1-120A
Availability
In Stock
Packaging
Bag
Description
RELAY GEN PURPOSE DPDT 30A 120V
Detailed Description
General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
Datasheet
Payment
Delivery
Mfr
Picker Components
Grade
-
Series
PC730
Features
-
Coil Type
Non Latching
Packaging
Bag
Relay Type
General Purpose
Seal Rating
-
Coil Current
99.5 mA
Coil Voltage
120VAC
Contact Form
DPDT (2 Form C)
Operate Time
25 ms
Release Time
15 ms
Mounting Type
Chassis Mount
Qualification
-
Approval Agency
CUL, cURus, UL
Coil Insulation
Class B
Coil Resistance
1.21 kOhms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
330VAC, 36VDC - Max
Termination Style
Quick Connect - 0.250" (6.3mm)
Base Product Number
PC730-2C
Load - Max Switching
9900VA, 1080W
Must Operate Voltage
96 VAC
Must Release Voltage
36 VAC
Operating Temperature
-25°C ~ 55°C
Contact Rating (Current)
30 A
| Attribute | Value |
|---|---|
| Mfr | Picker Components |
| Grade | - |
| Series | PC730 |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Bag |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 99.5 mA |
| Coil Voltage | 120VAC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 25 ms |
| Release Time | 15 ms |
| Mounting Type | Chassis Mount |
| Qualification | - |
| Approval Agency | CUL, cURus, UL |
| Coil Insulation | Class B |
| Coil Resistance | 1.21 kOhms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 330VAC, 36VDC - Max |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Base Product Number | PC730-2C |
| Load - Max Switching | 9900VA, 1080W |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 36 VAC |
| Operating Temperature | -25°C ~ 55°C |
| Contact Rating (Current) | 30 A |
