Step1: Product

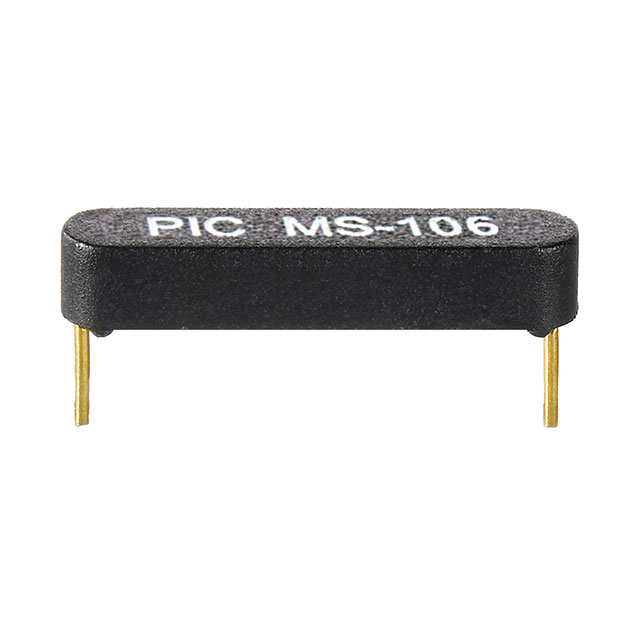

PIC GmbH MS-106-3-1
Images are for reference only
Manufacturer
Manufacturer No
MS-106-3-1
Availability
In Stock
Packaging
Bulk
Description
SWITCH REED SPST-NO 700MA 130V
Detailed Description
Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 700mA (AC/DC) 130 V Through Hole
Datasheet
Payment
Delivery
Type
Molded Body Reed
Series
-
Circuit
SPST-NO
Packaging
Bulk
Size - Body
0.669" L x 0.110" W x 0.126" H (17.00mm x 2.80mm x 3.20mm)
Manufacturer
PIC GmbH
Operate Time
0.5 ms
Release Time
0.3 ms
Mounting Type
Through Hole
Operate Range
10 ~ 15AT
Power - Rated
10W
Release Range
4AT
Current - Carry
1A (AC/DC)
Length - Overall
0.669" (17.00mm)
Termination Style
PC Pin
Height Above Board
0.126" (3.20mm)
Current - Switching
700mA (AC/DC)
Operating Temperature
-20°C ~ 85°C
Voltage - Switching AC
130 V
Voltage - Switching DC
180 V
| Attribute | Value |
|---|---|
| Type | Molded Body Reed |
| Series | - |
| Circuit | SPST-NO |
| Packaging | Bulk |
| Size - Body | 0.669" L x 0.110" W x 0.126" H (17.00mm x 2.80mm x 3.20mm) |
| Manufacturer | PIC GmbH |
| Operate Time | 0.5 ms |
| Release Time | 0.3 ms |
| Mounting Type | Through Hole |
| Operate Range | 10 ~ 15AT |
| Power - Rated | 10W |
| Release Range | 4AT |
| Current - Carry | 1A (AC/DC) |
| Length - Overall | 0.669" (17.00mm) |
| Termination Style | PC Pin |
| Height Above Board | 0.126" (3.20mm) |
| Current - Switching | 700mA (AC/DC) |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Switching AC | 130 V |
| Voltage - Switching DC | 180 V |
