Step1: Product

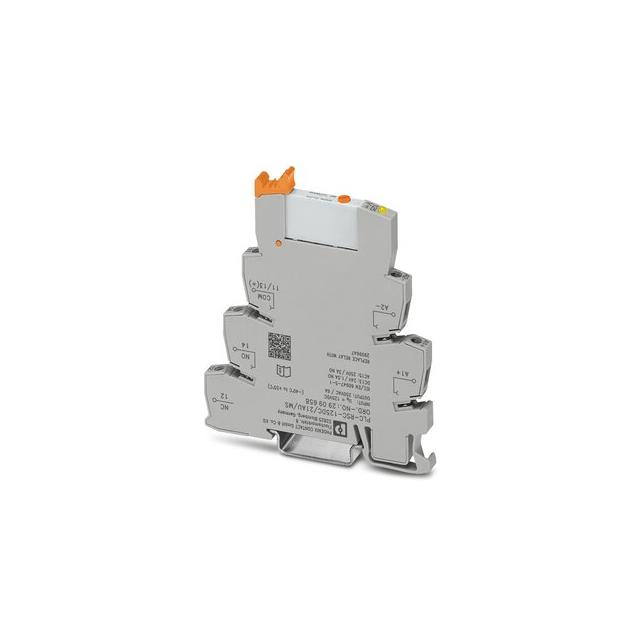

Phoenix Contact 2909658
Images are for reference only
Manufacturer
Manufacturer No
2909658
Packaging
Bulk
Description
RELAY GEN PURPOSE SPDT 50MA 125V
Detailed Description
General Purpose Relay SPDT (1 Form C) DIN Rail
Datasheet
Payment
Delivery
Grade
-
Series
PLC-RSC
Features
Diode, Lighted Indicator, Socket Included
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
-
Coil Current
3 mA
Coil Voltage
125VDC
Contact Form
SPDT (1 Form C)
Manufacturer
Phoenix Contact
Operate Time
5 ms
Release Time
8 ms
Mounting Type
DIN Rail
Qualification
-
Approval Agency
cULus, DNV, EAC, UL
Coil Insulation
-
Coil Resistance
41.667 kOhms
Contact Material
Silver Tin Oxide (AgSnO), Gold (Au)
Switching Voltage
30VAC, 36VDC - Max
Termination Style
Screw Terminal
Base Product Number
29096
Load - Max Switching
-
Must Operate Voltage
96.3 VDC
Must Release Voltage
-
Operating Temperature
-40°C ~ 55°C
Contact Rating (Current)
50 mA
| Attribute | Value |
|---|---|
| Grade | - |
| Series | PLC-RSC |
| Features | Diode, Lighted Indicator, Socket Included |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 3 mA |
| Coil Voltage | 125VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | Phoenix Contact |
| Operate Time | 5 ms |
| Release Time | 8 ms |
| Mounting Type | DIN Rail |
| Qualification | - |
| Approval Agency | cULus, DNV, EAC, UL |
| Coil Insulation | - |
| Coil Resistance | 41.667 kOhms |
| Contact Material | Silver Tin Oxide (AgSnO), Gold (Au) |
| Switching Voltage | 30VAC, 36VDC - Max |
| Termination Style | Screw Terminal |
| Base Product Number | 29096 |
| Load - Max Switching | - |
| Must Operate Voltage | 96.3 VDC |
| Must Release Voltage | - |
| Operating Temperature | -40°C ~ 55°C |
| Contact Rating (Current) | 50 mA |
