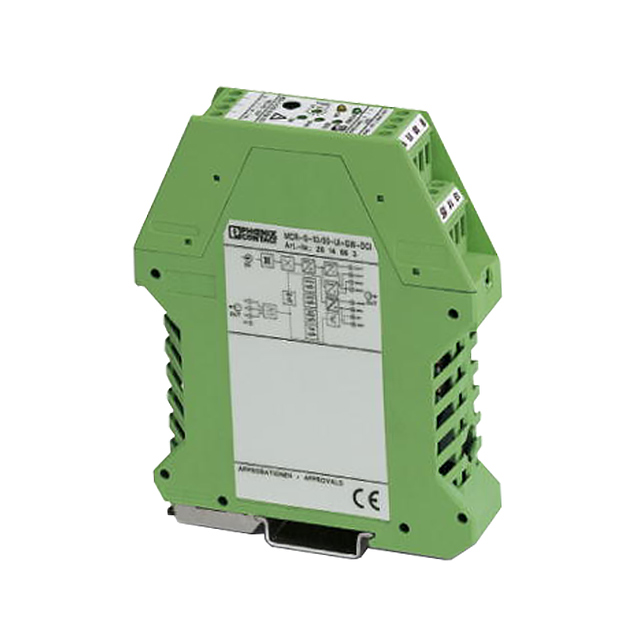

Phoenix Contact 2814647

Images are for reference only

Manufacturer

Phoenix Contact

Manufacturer No

2814647

Package

Module

Packaging

Bulk

Description

CURRENT SENSOR HE/OL 55A

Detailed Description

Current Sensor 55A 1 Channel Hall Effect, Open Loop Bidirectional Module

Datasheet

2814647

Payment

Delivery

Mfr

Phoenix Contact

Output

Ratiometric, Voltage and Current

Series

-

Accuracy

±0.5%

Frequency

15Hz ~ 400Hz

Linearity

-

Packaging

Bulk

Sensitivity

-

Sensor Type

Hall Effect, Open Loop

Polarization

Bidirectional

For Measuring

AC/DC

Mounting Type

DIN Rail

Response Time

330ms (AC), 40ms (DC)

Package / Case

Module

Voltage - Supply

20V ~ 30V

Current - Sensing

55A

Number of Channels

1

Operating Temperature

-20°C ~ 60°C

Current - Supply (Max)

40mA

Supplier Device Package

-

Attribute	Value
Mfr	Phoenix Contact
Output	Ratiometric, Voltage and Current
Series	-
Accuracy	±0.5%
Frequency	15Hz ~ 400Hz
Linearity	-
Packaging	Bulk
Sensitivity	-
Sensor Type	Hall Effect, Open Loop
Polarization	Bidirectional
For Measuring	AC/DC
Mounting Type	DIN Rail
Response Time	330ms (AC), 40ms (DC)
Package / Case	Module
Voltage - Supply	20V ~ 30V
Current - Sensing	55A
Number of Channels	1
Operating Temperature	-20°C ~ 60°C
Current - Supply (Max)	40mA
Supplier Device Package	-
