Step1: Product

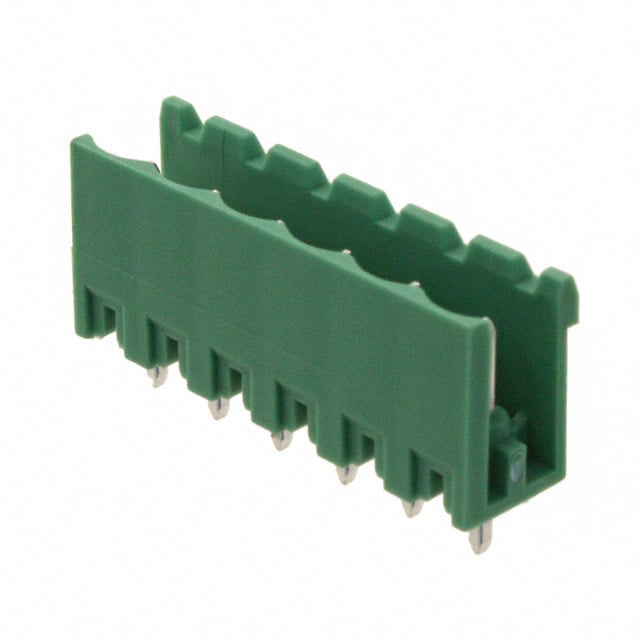

Phoenix Contact 1753518
Images are for reference only
Manufacturer
Manufacturer No
1753518
Quantity
19
Availability
In Stock
Packaging
Bulk
Description
TERM BLOCK HDR 6POS 5MM
Detailed Description
6 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) Vertical Through Hole
Datasheet
Payment
Delivery
Type
Header, Male Pins, Shrouded (2 Side)
Color
Green
Pitch
0.197" (5.00mm)
Series
COMBICON MSTBV
Features
-
Packaging
Bulk
Screw Size
-
Current - UL
12 A
Manufacturer
Phoenix Contact
Voltage - UL
300 V
Current - IEC
12A
Mounting Type
Through Hole
Voltage - IEC
400 V
Torque - Screw
-
Plug Wire Entry
-
Contact Material
-
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
0.472" (12.00mm)
Termination Style
Solder
Wire Strip Length
-
Header Orientation
Vertical
Ingress Protection
-
Contact Tail Length
0.154" (3.90mm)
Number of Positions
6
Positions Per Level
6
Contact Mating Finish
Tin
Operating Temperature
-
Wire Gauge or Range - AWG
-
Wire Gauge or Range - mm²
-
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | COMBICON MSTBV |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Current - UL | 12 A |
| Manufacturer | Phoenix Contact |
| Voltage - UL | 300 V |
| Current - IEC | 12A |
| Mounting Type | Through Hole |
| Voltage - IEC | 400 V |
| Torque - Screw | - |
| Plug Wire Entry | - |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 0.472" (12.00mm) |
| Termination Style | Solder |
| Wire Strip Length | - |
| Header Orientation | Vertical |
| Ingress Protection | - |
| Contact Tail Length | 0.154" (3.90mm) |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Contact Mating Finish | Tin |
| Operating Temperature | - |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Material Flammability Rating | UL94 V-0 |
