Step1: Product

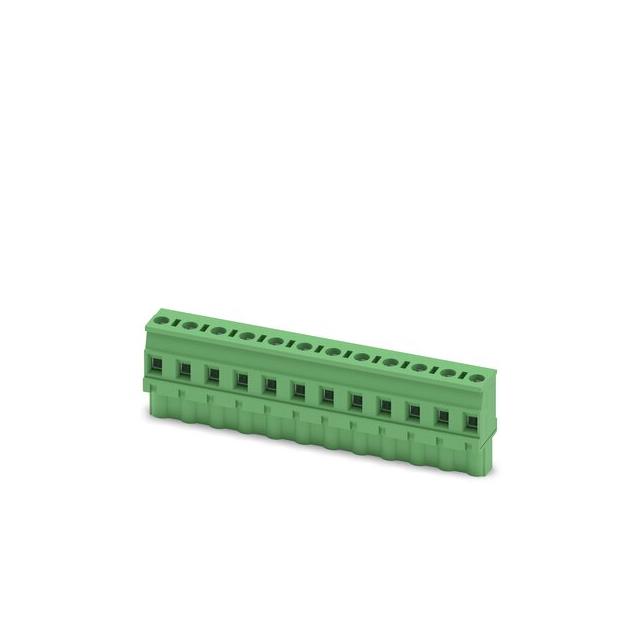

Phoenix Contact 1737916
Images are for reference only
Manufacturer
Manufacturer No
1737916
Packaging
Bulk
Description
TERM BLOCK PLUG 12POS 7.50MM
Detailed Description
12 Position Terminal Block Plug, Female Sockets 0.295" (7.50mm) 270° Free Hanging (In-Line)
Datasheet
Payment
Delivery
Type
Plug, Female Sockets
Color
Green
Pitch
0.295" (7.50mm)
Series
COMBICON GMVSTBW
Features
Retention Latches (Non-Wire Side)
Packaging
Bulk
Screw Size
M3
Current - UL
15 A
Manufacturer
Phoenix Contact
Voltage - UL
300 V
Current - IEC
12A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
1 kV
Torque - Screw
0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry
270°
Contact Material
-
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
1.024" (26.01mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
7mm
Header Orientation
-
Ingress Protection
-
Contact Tail Length
-
Number of Positions
12
Positions Per Level
12
Contact Mating Finish
Tin
Operating Temperature
-
Wire Gauge or Range - AWG
12-30 AWG
Wire Gauge or Range - mm²
0.2-2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.295" (7.50mm) |
| Series | COMBICON GMVSTBW |
| Features | Retention Latches (Non-Wire Side) |
| Packaging | Bulk |
| Screw Size | M3 |
| Current - UL | 15 A |
| Manufacturer | Phoenix Contact |
| Voltage - UL | 300 V |
| Current - IEC | 12A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 1 kV |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Plug Wire Entry | 270° |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 1.024" (26.01mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 7mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Number of Positions | 12 |
| Positions Per Level | 12 |
| Contact Mating Finish | Tin |
| Operating Temperature | - |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Material Flammability Rating | UL94 V-0 |
