Step1: Product

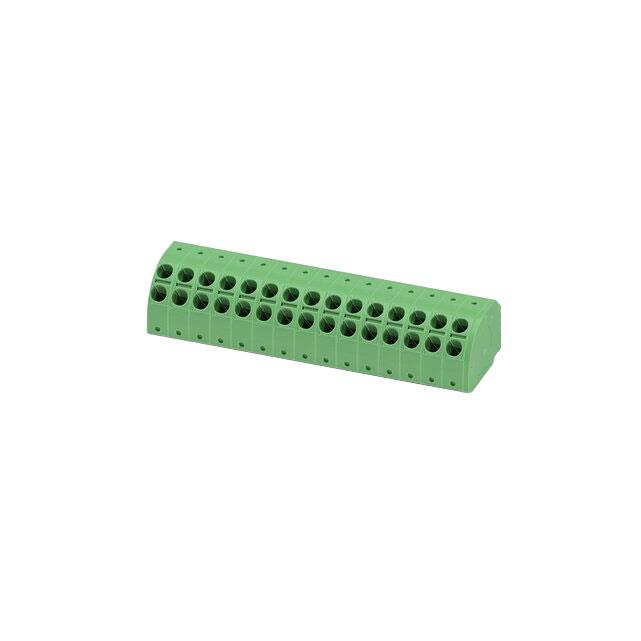

Phoenix Contact 1725666
Images are for reference only
Manufacturer
Manufacturer No
1725666
Availability
In Stock
Packaging
Bulk
Description
TERM BLOCK PLUG 15POS 5MM
Detailed Description
15 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 45° Free Hanging (In-Line)
Datasheet
Payment
Delivery
Type
Plug for Unshrouded Header
Color
Green
Pitch
0.197" (5.00mm)
Series
COMBICON PTDA
Features
-
Packaging
Bulk
Screw Size
-
Current - UL
13.5 A
Manufacturer
Phoenix Contact
Voltage - UL
300 V
Current - IEC
13.5A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
630 V
Torque - Screw
-
Plug Wire Entry
45°
Contact Material
-
Housing Material
Polyamide (PA), Nylon
Number of Levels
1 (Mate), 2 (Input)
Insulation Height
0.630" (16.00mm)
Termination Style
Screwless - Spring Cage, Tension Clamp
Wire Strip Length
10mm
Header Orientation
-
Ingress Protection
-
Contact Tail Length
-
Number of Positions
15
Positions Per Level
15 (Mate), 30 (Input)
Contact Mating Finish
Tin
Operating Temperature
-
Wire Gauge or Range - AWG
14-24 AWG
Wire Gauge or Range - mm²
0.2-2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Color | Green |
| Pitch | 0.197" (5.00mm) |
| Series | COMBICON PTDA |
| Features | - |
| Packaging | Bulk |
| Screw Size | - |
| Current - UL | 13.5 A |
| Manufacturer | Phoenix Contact |
| Voltage - UL | 300 V |
| Current - IEC | 13.5A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 630 V |
| Torque - Screw | - |
| Plug Wire Entry | 45° |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 (Mate), 2 (Input) |
| Insulation Height | 0.630" (16.00mm) |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Wire Strip Length | 10mm |
| Header Orientation | - |
| Ingress Protection | - |
| Contact Tail Length | - |
| Number of Positions | 15 |
| Positions Per Level | 15 (Mate), 30 (Input) |
| Contact Mating Finish | Tin |
| Operating Temperature | - |
| Wire Gauge or Range - AWG | 14-24 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Material Flammability Rating | UL94 V-0 |
