Step1: Product

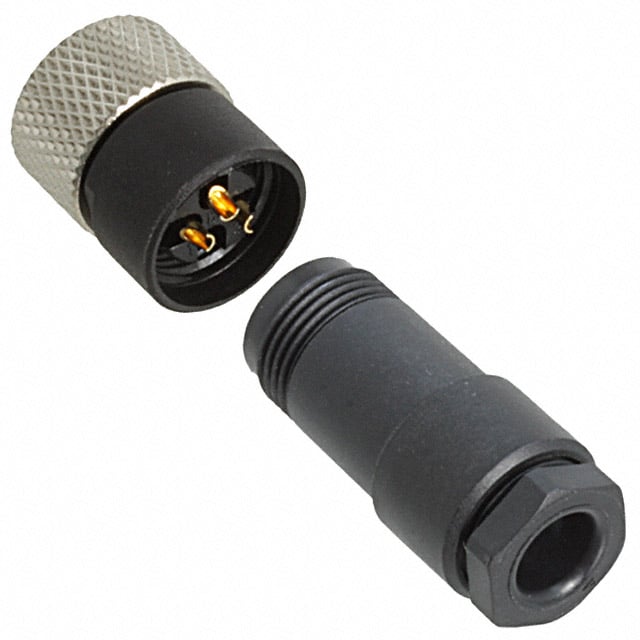

Phoenix Contact 1681172
Images are for reference only
Manufacturer
Manufacturer No
1681172
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT FMALE 3POS SOLDER CUP
Detailed Description
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Color
Black, Silver
Series
SACC
Features
Backshell, Coupling Nut
Packaging
Bulk
Shielding
-
Orientation
A
Termination
Solder Cup
Applications
-
Shell Finish
Nickel
Cable Opening
0.138" ~ 0.197" (3.50mm ~ 5.00mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
48VAC, 60VDC
Insert Material
Polyamide (PA), Nylon
Shell Size, MIL
-
Contact Material
Copper Zinc
Mounting Feature
-
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
3
Shell Size - Insert
M8-3
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 HB
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | Black, Silver |
| Series | SACC |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | - |
| Orientation | A |
| Termination | Solder Cup |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | 0.138" ~ 0.197" (3.50mm ~ 5.00mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 48VAC, 60VDC |
| Insert Material | Polyamide (PA), Nylon |
| Shell Size, MIL | - |
| Contact Material | Copper Zinc |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 3 |
| Shell Size - Insert | M8-3 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 HB |
| Contact Finish Thickness - Mating | - |
