Step1: Product

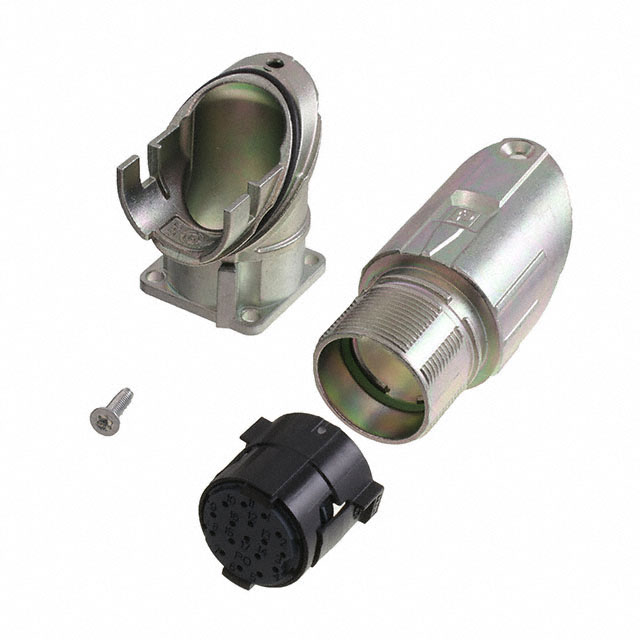

Phoenix Contact 1628496
Images are for reference only
Manufacturer
Manufacturer No
1628496
Availability
In Stock
Packaging
Bag
Description
CONN RCPT HSG MALE 17P PNL MT RA
Detailed Description
17 Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
Datasheet
Payment
Delivery
Note
Contacts Sold Separately
Type
For Male Pins
Series
PRO
Features
Backshell, Rotatable
Includes
-
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Contact Size
1.0mm
Contact Type
Crimp
Manufacturer
Phoenix Contact
Shell Finish
-
Contact Shape
Circular
Housing Color
Silver
Mounting Type
Panel Mount, Right Angle
Connector Type
Receptacle Housing
Fastening Type
Push-Twist
Shell Material
Gadolinium-Zinc
Insert Material
Polyamide (PA66), Nylon 6/6
Shell Size, MIL
-
Mounting Feature
Flange
Ingress Protection
IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Number of Positions
17
Shell Size - Insert
M23-17
Operating Temperature
-40°C ~ 125°C
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Type | For Male Pins |
| Series | PRO |
| Features | Backshell, Rotatable |
| Includes | - |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Contact Size | 1.0mm |
| Contact Type | Crimp |
| Manufacturer | Phoenix Contact |
| Shell Finish | - |
| Contact Shape | Circular |
| Housing Color | Silver |
| Mounting Type | Panel Mount, Right Angle |
| Connector Type | Receptacle Housing |
| Fastening Type | Push-Twist |
| Shell Material | Gadolinium-Zinc |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size, MIL | - |
| Mounting Feature | Flange |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 17 |
| Shell Size - Insert | M23-17 |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | - |
