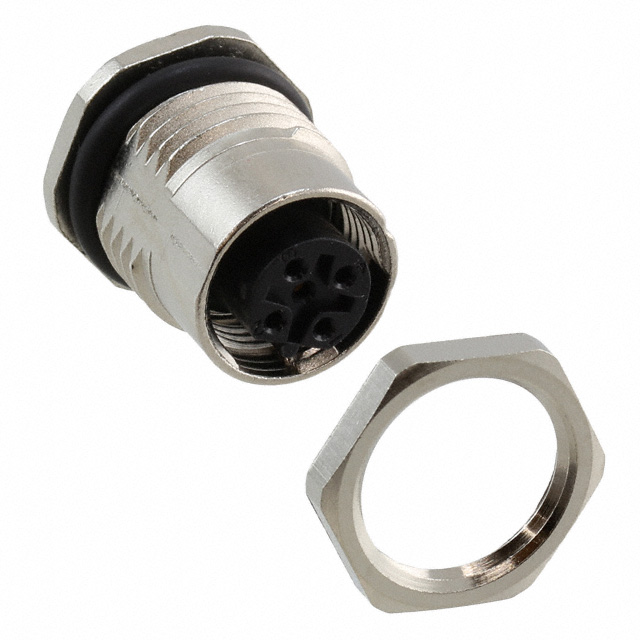

Phoenix Contact 1543650
Images are for reference only
Manufacturer
Manufacturer No
1543650
Availability
In Stock
Packaging
Bulk
Description
CONN RCPT FMALE 5POS GOLD SOLDER
Detailed Description
5 Position Circular Connector Receptacle, Female Sockets Solder
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Color
Silver
Series
DSI
Features
-
Packaging
Bulk
Shielding
-
Orientation
B
Termination
Solder
Applications
-
Shell Finish
Nickel
Cable Opening
-
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Twist
Shell Material
Zinc Die Cast
Voltage Rating
60V
Insert Material
Polyamide (PA66), Nylon 6/6
Shell Size, MIL
-
Contact Material
Copper Zinc
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | Silver |
| Series | DSI |
| Features | - |
| Packaging | Bulk |
| Shielding | - |
| Orientation | B |
| Termination | Solder |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | - |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Twist |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 60V |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size, MIL | - |
| Contact Material | Copper Zinc |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
