Step1: Product

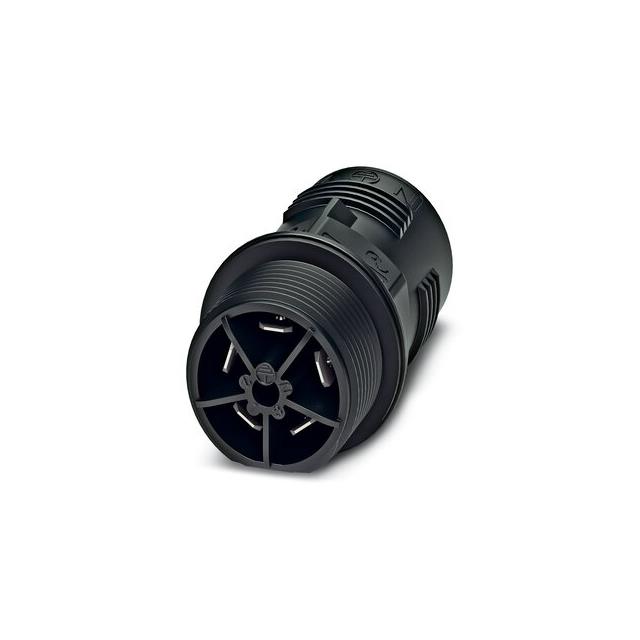

Phoenix Contact 1414738
Images are for reference only
Manufacturer
Manufacturer No
1414738
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
PANEL FEED-THROUGH QUICKON CONNE
Detailed Description
5 (4 + PE) Position Circular Connector Panel Feed-Through IDC
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Color
Black
Series
QPD
Features
Backshell
Packaging
Bulk
Shielding
Unshielded
Orientation
Keyed
Termination
IDC
Applications
-
Shell Finish
-
Cable Opening
-
Mounting Type
Panel Mount
Connector Type
Panel Feed-Through
Fastening Type
Threaded
Shell Material
Polyamide (PA), Nylon
Voltage Rating
-
Insert Material
Polyamide (PA), Nylon
Shell Size, MIL
-
Contact Material
Copper
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Number of Positions
5 (4 + PE)
Shell Size - Insert
M25-5
Current Rating (Amps)
17.5A
Operating Temperature
-40°C ~ 100°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | Black |
| Series | QPD |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | IDC |
| Applications | - |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Panel Mount |
| Connector Type | Panel Feed-Through |
| Fastening Type | Threaded |
| Shell Material | Polyamide (PA), Nylon |
| Voltage Rating | - |
| Insert Material | Polyamide (PA), Nylon |
| Shell Size, MIL | - |
| Contact Material | Copper |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 5 (4 + PE) |
| Shell Size - Insert | M25-5 |
| Current Rating (Amps) | 17.5A |
| Operating Temperature | -40°C ~ 100°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
