Step1: Product

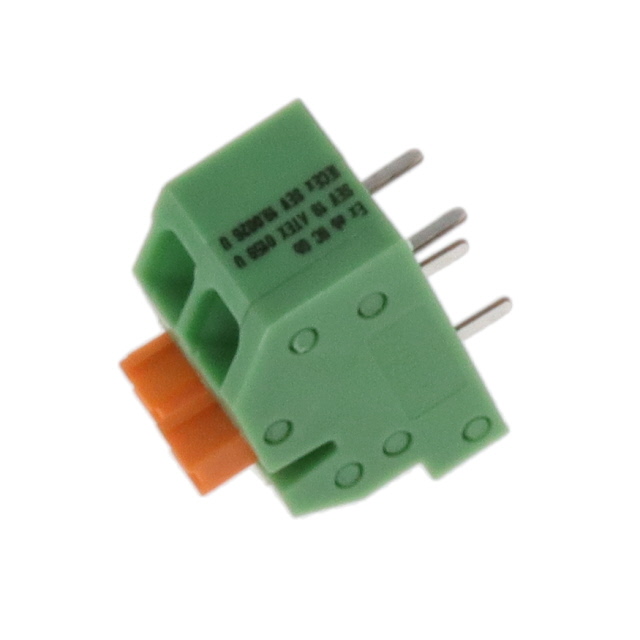

Phoenix Contact 1070999
Images are for reference only
Manufacturer
Manufacturer No
1070999
Availability
In Stock
Packaging
Tray
Description
PCB TERMINAL BLOCK, NOMINAL CURR
Detailed Description
2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole
Datasheet
Payment
Delivery
Color
Green
Pitch
0.138" (3.50mm)
Series
COMBICON SPTAF
Features
Interlocking (Side)
Packaging
Tray
Wire Gauge
16-24 AWG
Manufacturer
Phoenix Contact
Screw Thread
-
Mounting Type
Through Hole
Torque - Screw
-
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Wire Termination
Screwless - Leg Spring, Push-In Spring
Mating Orientation
45° (135°) Angle with Board
Positions Per Level
2
Operating Temperature
-40°C ~ 100°C
Clamp Material - Plating
-
Screw Material - Plating
-
Contact Material - Plating
Copper Alloy - Tin Plated
| Attribute | Value |
|---|---|
| Color | Green |
| Pitch | 0.138" (3.50mm) |
| Series | COMBICON SPTAF |
| Features | Interlocking (Side) |
| Packaging | Tray |
| Wire Gauge | 16-24 AWG |
| Manufacturer | Phoenix Contact |
| Screw Thread | - |
| Mounting Type | Through Hole |
| Torque - Screw | - |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Mating Orientation | 45° (135°) Angle with Board |
| Positions Per Level | 2 |
| Operating Temperature | -40°C ~ 100°C |
| Clamp Material - Plating | - |
| Screw Material - Plating | - |
| Contact Material - Plating | Copper Alloy - Tin Plated |
