Step1: Product

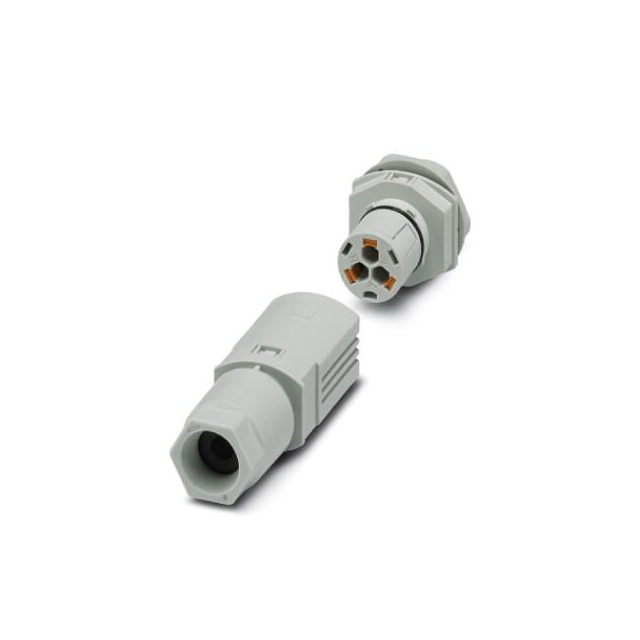

Phoenix Contact 1047322
Images are for reference only
Manufacturer
Manufacturer No
1047322
Availability
In Stock
Packaging
Box
Description
CONN PNL FEED THRU 3POS PUSH IN
Detailed Description
3 (2 + PE) Position Circular Connector Panel Feed-Through Push In, Spring
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Color
Light Gray
Series
-
Features
Backshell
Packaging
Box
Shielding
Unshielded
Orientation
Keyed
Termination
Push In, Spring
Applications
-
Shell Finish
-
Cable Opening
0.236" ~ 0.512" (6.00mm ~ 13.00mm)
Mounting Type
Panel Mount
Connector Type
Panel Feed-Through
Fastening Type
Push-Twist
Shell Material
-
Voltage Rating
690V
Insert Material
-
Shell Size, MIL
-
Contact Material
Copper
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
-
Ingress Protection
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Number of Positions
3 (2 + PE)
Shell Size - Insert
M25-3
Current Rating (Amps)
20A
Operating Temperature
-40°C ~ 100°C
Contact Finish - Mating
-
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Color | Light Gray |
| Series | - |
| Features | Backshell |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Push In, Spring |
| Applications | - |
| Shell Finish | - |
| Cable Opening | 0.236" ~ 0.512" (6.00mm ~ 13.00mm) |
| Mounting Type | Panel Mount |
| Connector Type | Panel Feed-Through |
| Fastening Type | Push-Twist |
| Shell Material | - |
| Voltage Rating | 690V |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Copper |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | - |
| Ingress Protection | IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 3 (2 + PE) |
| Shell Size - Insert | M25-3 |
| Current Rating (Amps) | 20A |
| Operating Temperature | -40°C ~ 100°C |
| Contact Finish - Mating | - |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
