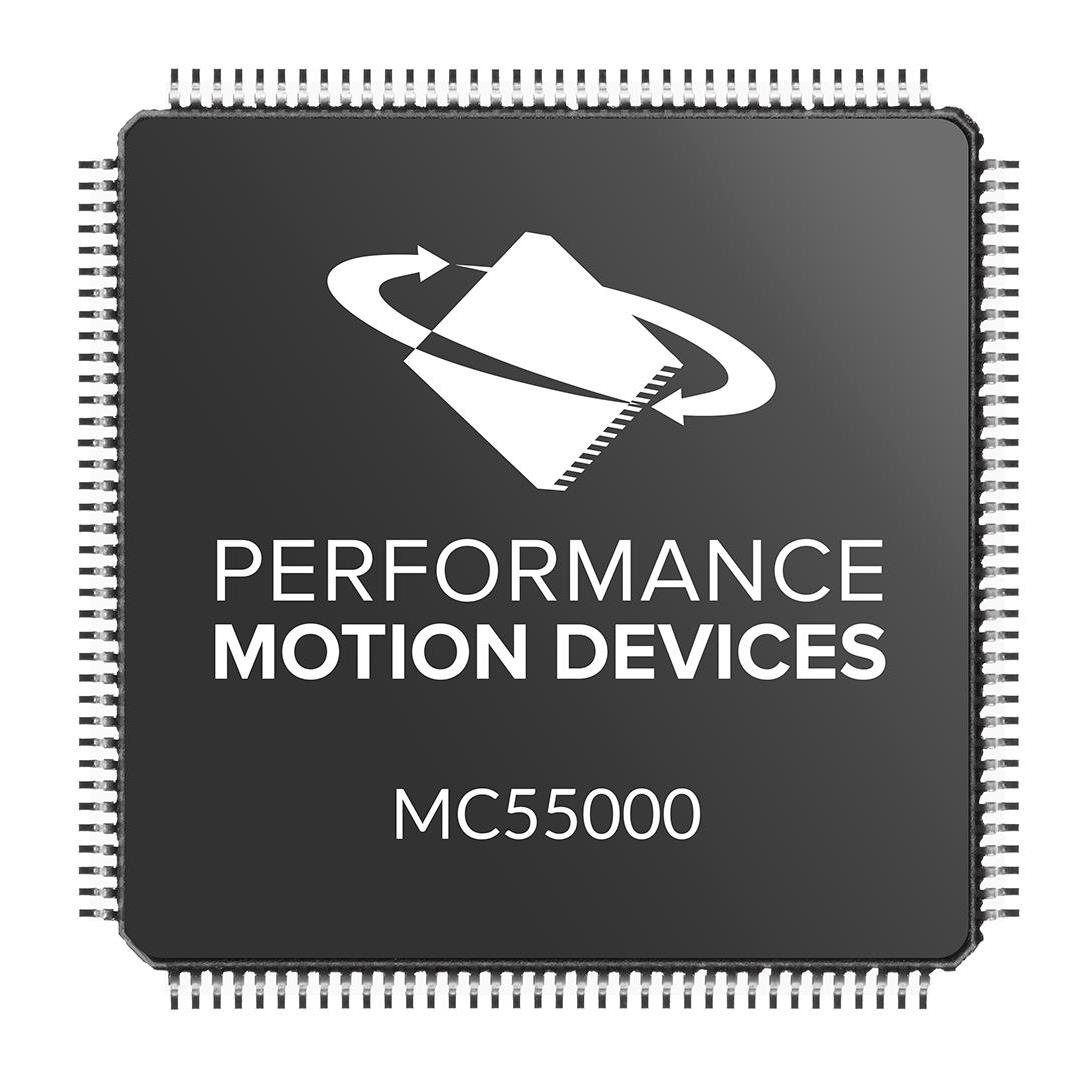

Performance Motion Devices, Inc. MC55420CP
Images are for reference only
Manufacturer
Manufacturer No
MC55420CP
Package
144-LQFP
Packaging
Tray
Description
MAGELLAN STEP CTRL IC, 4-AXIS
Detailed Description
Bipolar, Unipolar Motor Driver CMOS CAN, Parallel, RS-232, RS485 144-LQFP (20x20)
Datasheet
Payment
Delivery
Series
Magellan®
Function
Controller - Commutation, Direction Management
Interface
CAN, Parallel, RS-232, RS485
Packaging
Tray
Technology
CMOS
Applications
DC Motor Controller, Brushless (BLDC), 2-Phase
Manufacturer
Performance Motion Devices, Inc.
Mounting Type
Surface Mount
Package / Case
144-LQFP
Voltage - Load
3.3V
Step Resolution
1 ~ 1/256
Current - Output
5mA
Voltage - Supply
3.3V
Motor Type - AC, DC
-
Motor Type - Stepper
Bipolar, Unipolar
Output Configuration
Step/Direction
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
144-LQFP (20x20)
| Attribute | Value |
|---|---|
| Series | Magellan® |
| Function | Controller - Commutation, Direction Management |
| Interface | CAN, Parallel, RS-232, RS485 |
| Packaging | Tray |
| Technology | CMOS |
| Applications | DC Motor Controller, Brushless (BLDC), 2-Phase |
| Manufacturer | Performance Motion Devices, Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Voltage - Load | 3.3V |
| Step Resolution | 1 ~ 1/256 |
| Current - Output | 5mA |
| Voltage - Supply | 3.3V |
| Motor Type - AC, DC | - |
| Motor Type - Stepper | Bipolar, Unipolar |
| Output Configuration | Step/Direction |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 144-LQFP (20x20) |
