Step1: Product

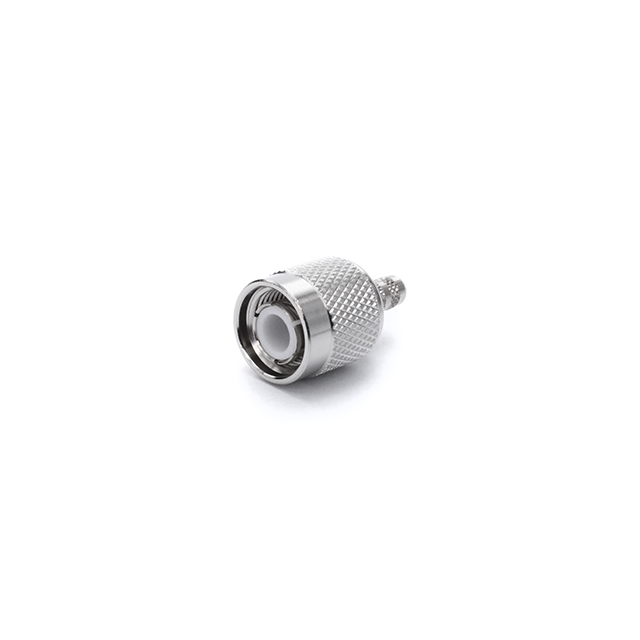

PEI-Genesis IPRF-T-P01F0N01-H
Images are for reference only
Manufacturer
Manufacturer No
IPRF-T-P01F0N01-H
Packaging
Box
Description
TNC STRAIGHT CRIMP PLUG
Detailed Description
TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Datasheet
Payment
Delivery
Mfr
PEI-Genesis
Series
Sure-Seal®
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Box
Body Finish
Nickel
Cable Group
RG-58, Belden 9907, HDF195, LMR-195, URM43, 76
Body Material
Brass
Housing Color
Silver
Mating Cycles
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
-
Voltage Rating
500 V
Connector Style
TNC
Frequency - Max
11 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
IP68 - Dust Tight, Waterproof
Shield Termination
Crimp
Base Product Number
IPRF
Contact Termination
Crimp
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Nickel
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | PEI-Genesis |
| Series | Sure-Seal® |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | Nickel |
| Cable Group | RG-58, Belden 9907, HDF195, LMR-195, URM43, 76 |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Voltage Rating | 500 V |
| Connector Style | TNC |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Shield Termination | Crimp |
| Base Product Number | IPRF |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Nickel |
| Center Contact Material | Brass |
