Pasternack PE8704

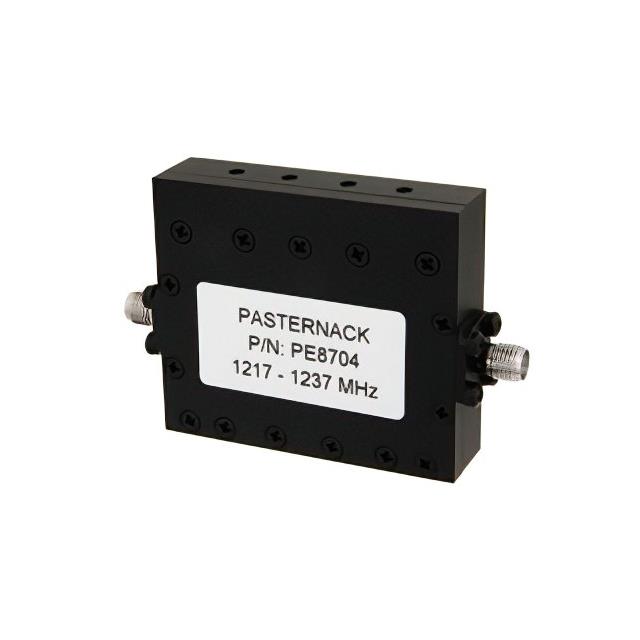

Images are for reference only

Manufacturer

Pasternack

Manufacturer No

PE8704

Package

Module, SMA Connectors

Packaging

Retail Package

Description

4 Section Bandpass Filter With S

Detailed Description

1.227GHz Center Frequency Band Pass RF Filter (Radio Frequency) 20MHz Bandwidth 1.3dB Module, SMA Connectors

Datasheet

PE8704

Payment

Delivery

Ripple

-

Series

-

Bandwidth

20MHz

Frequency

1.227GHz Center

Packaging

Retail Package

Filter Type

Band Pass

Height (Max)

0.531" (13.50mm)

Manufacturer

Pasternack

Mounting Type

Chassis Mount

Insertion Loss

1.3dB

Package / Case

Module, SMA Connectors

Size / Dimension

2.142" L x 1.839" W (54.40mm x 46.70mm)

Attribute	Value
Ripple	-
Series	-
Bandwidth	20MHz
Frequency	1.227GHz Center
Packaging	Retail Package
Filter Type	Band Pass
Height (Max)	0.531" (13.50mm)
Manufacturer	Pasternack
Mounting Type	Chassis Mount
Insertion Loss	1.3dB
Package / Case	Module, SMA Connectors
Size / Dimension	2.142" L x 1.839" W (54.40mm x 46.70mm)
