Step1: Product

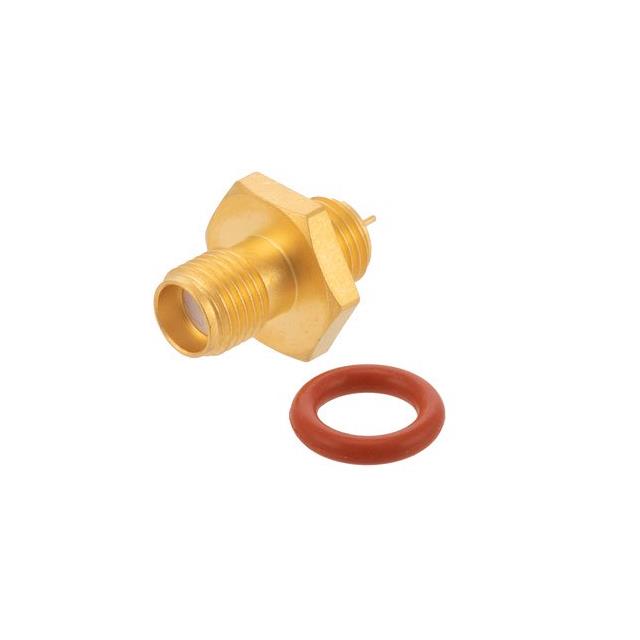

Pasternack PE4530
Images are for reference only
Manufacturer
Manufacturer No
PE4530
Packaging
Retail Package
Description
SMA Female Bulkhead Mount Hermet
Detailed Description
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder
Datasheet
Payment
Delivery
Mfr
Pasternack
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Retail Package
Body Finish
Gold
Cable Group
-
Body Material
Stainless Steel
Housing Color
Gold
Mating Cycles
-
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Socket
Fastening Type
Threaded
Insertion Loss
-
Connector Style
SMA
Frequency - Max
18 GHz
Number of Ports
1
Mounting Feature
Bulkhead
Ingress Protection
-
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Retail Package |
| Body Finish | Gold |
| Cable Group | - |
| Body Material | Stainless Steel |
| Housing Color | Gold |
| Mating Cycles | - |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Connector Style | SMA |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead |
| Ingress Protection | - |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
