Step1: Product

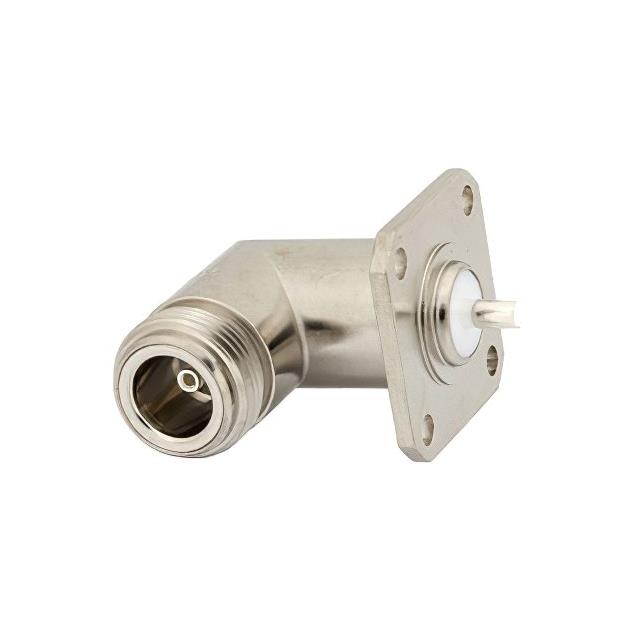

Pasternack PE4486
Images are for reference only
Manufacturer
Manufacturer No
PE4486
Packaging
Retail Package
Description
N Female Right Angle Connector S
Detailed Description
N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount, Right Angle Solder Cup
Datasheet
Payment
Delivery
Mfr
Pasternack
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Retail Package
Body Finish
Nickel
Cable Group
-
Body Material
Brass
Housing Color
Silver
Mating Cycles
-
Mounting Type
Panel Mount, Right Angle
Connector Type
Receptacle, Female Socket
Fastening Type
Threaded
Insertion Loss
-
Voltage Rating
1000 V
Connector Style
N Type
Frequency - Max
12.4 GHz
Number of Ports
1
Mounting Feature
Flange
Ingress Protection
-
Shield Termination
Solder
Contact Termination
Solder Cup
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Silver
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Retail Package |
| Body Finish | Nickel |
| Cable Group | - |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Panel Mount, Right Angle |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Voltage Rating | 1000 V |
| Connector Style | N Type |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Ingress Protection | - |
| Shield Termination | Solder |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Silver |
| Center Contact Material | Beryllium Copper |
