Step1: Product

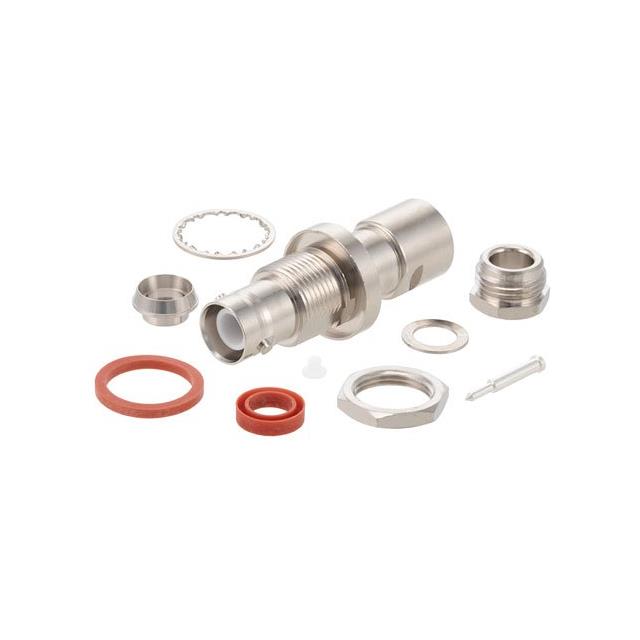

Pasternack PE4315
Images are for reference only
Manufacturer
Manufacturer No
PE4315
Packaging
Retail Package
Description
SHV Jack Bulkhead Mount Connecto
Detailed Description
SHV Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Datasheet
Payment
Delivery
Mfr
Pasternack
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Retail Package
Body Finish
Nickel
Cable Group
RG-59, 62, 71
Body Material
Brass
Housing Color
Silver
Mating Cycles
-
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Insertion Loss
-
Connector Style
SHV
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Clamp
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-
Center Contact Plating
Silver
Center Contact Material
-
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Retail Package |
| Body Finish | Nickel |
| Cable Group | RG-59, 62, 71 |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Insertion Loss | - |
| Connector Style | SHV |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Clamp |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | - |
| Center Contact Plating | Silver |
| Center Contact Material | - |
