Step1: Product

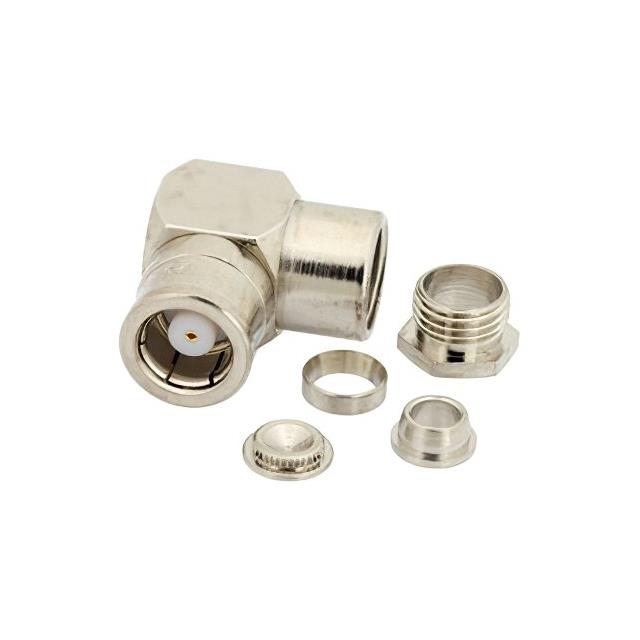

Pasternack PE4264
Images are for reference only
Manufacturer
Manufacturer No
PE4264
Packaging
Retail Package
Description
75 Ohm SMB Plug Right Angle Conn
Detailed Description
SMB Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Solder
Datasheet
Payment
Delivery
Mfr
Pasternack
Series
-
Features
-
Includes
-
Impedance
75 Ohms
Packaging
Retail Package
Body Finish
Nickel
Cable Group
RG-59, 62
Body Material
Brass
Housing Color
Silver
Mating Cycles
-
Mounting Type
Free Hanging (In-Line), Right Angle
Connector Type
Plug, Male Pin
Fastening Type
Snap-On
Insertion Loss
-
Connector Style
SMB
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Crimp
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
-
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 75 Ohms |
| Packaging | Retail Package |
| Body Finish | Nickel |
| Cable Group | RG-59, 62 |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Connector Type | Plug, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Connector Style | SMB |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Crimp |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | - |
