Panjit International Inc. PJSD05TS_R1_00001

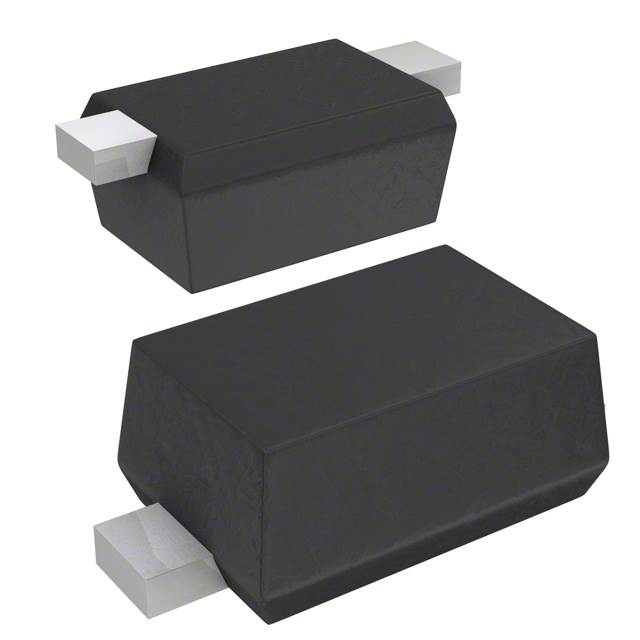

Images are for reference only
Manufacturer
Manufacturer No
PJSD05TS_R1_00001
Package
SC-79, SOD-523
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 5VWM 9VC SOD523
Detailed Description
9V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Datasheet
Payment
Delivery
Mfr
Panjit International Inc.
Type
Zener
Grade
-
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Qualification
-
Package / Case
SC-79, SOD-523
Power - Peak Pulse
120W
Base Product Number
PJSD05
Operating Temperature
-50°C ~ 150°C (TJ)
Power Line Protection
No
Capacitance @ Frequency
110pF @ 1MHz (Max)
Supplier Device Package
SOD-523
Unidirectional Channels
1
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
9V
Voltage - Reverse Standoff (Typ)
5V (Max)
Current - Peak Pulse (10/1000µs)
5A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Panjit International Inc. |
| Type | Zener |
| Grade | - |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | SC-79, SOD-523 |
| Power - Peak Pulse | 120W |
| Base Product Number | PJSD05 |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Capacitance @ Frequency | 110pF @ 1MHz (Max) |
| Supplier Device Package | SOD-523 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
