Step1: Product

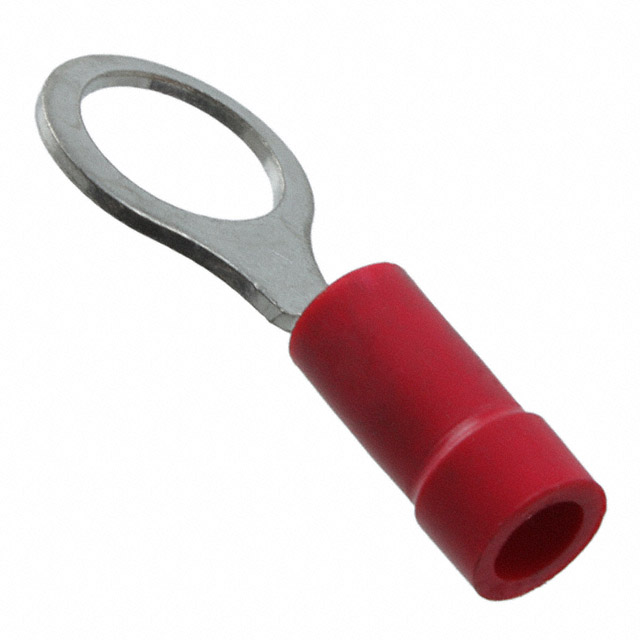

Panduit Corp PV18-56R-CY
Images are for reference only
Manufacturer
Manufacturer No
PV18-56R-CY
Availability
In Stock
Packaging
Bulk
Description
CONN RING CIRC 18-22AWG #5/16
Detailed Description
Ring Terminal Connector 5/16 Stud Circular 18-22 AWG Crimp
Datasheet
Payment
Delivery
Color
Red
Series
Pan-Term®
Features
Brazed Seam
Packaging
Bulk
Thickness
0.032" (0.81mm)
Insulation
Insulated
Wire Gauge
18-22 AWG
Termination
Crimp
Manufacturer
Panduit Corp
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
5/16 Stud
Terminal Type
Circular
Contact Finish
Tin
Contact Material
Copper
Length - Overall
1.110" (28.19mm)
Base Product Number
PV18
Insulation Diameter
0.150" (3.81mm)
Width - Outer Edges
0.460" (11.68mm)
Material - Insulation
Vinyl
| Attribute | Value |
|---|---|
| Color | Red |
| Series | Pan-Term® |
| Features | Brazed Seam |
| Packaging | Bulk |
| Thickness | 0.032" (0.81mm) |
| Insulation | Insulated |
| Wire Gauge | 18-22 AWG |
| Termination | Crimp |
| Manufacturer | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 5/16 Stud |
| Terminal Type | Circular |
| Contact Finish | Tin |
| Contact Material | Copper |
| Length - Overall | 1.110" (28.19mm) |
| Base Product Number | PV18 |
| Insulation Diameter | 0.150" (3.81mm) |
| Width - Outer Edges | 0.460" (11.68mm) |
| Material - Insulation | Vinyl |
