Step1: Product
Panduit Corp PNL-1000-3

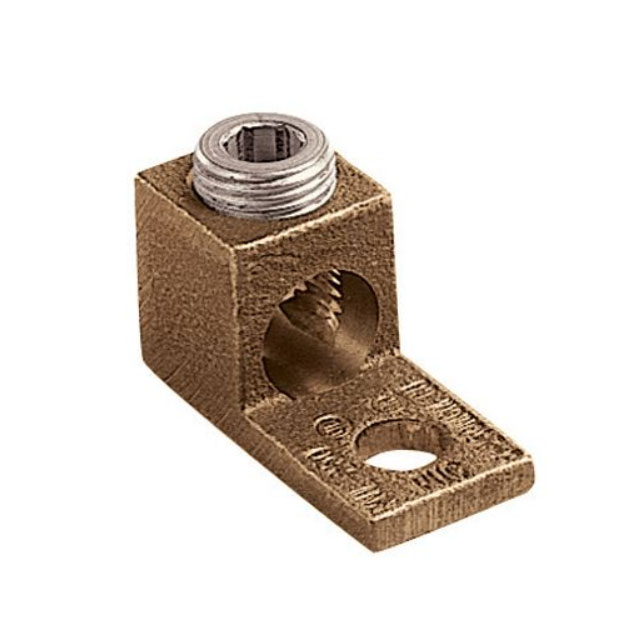

Images are for reference only
Manufacturer
Manufacturer No
PNL-1000-3
Packaging
Bulk
Description
CONN TERM RECT LUG 500-1000 MCM
Detailed Description
Terminal Connector Rectangular Lug, Grounding 500-1000MCM (kcmil)
Datasheet
Payment
Delivery
Color
-
Series
Pan-Lug™
Features
With Screw
Packaging
Bulk
Insulation
Non-Insulated
Wire Gauge
500-1000MCM (kcmil)
Termination
Screw
Manufacturer
Panduit Corp
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
-
Tab Thickness
0.375" (9.53mm)
Terminal Type
Lug, Grounding
Contact Finish
-
Terminal Style
Single Stud Hole
Contact Material
Copper Alloy
Length - Overall
3.880" (98.55mm)
Diameter - Ring ID
0.560" (14.22mm)
Base Product Number
PNL-1
Width - Outer Edges
1.750" (44.45mm)
Diameter - Barrel ID
-
Diameter - Barrel OD
-
| Attribute | Value |
|---|---|
| Color | - |
| Series | Pan-Lug™ |
| Features | With Screw |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Wire Gauge | 500-1000MCM (kcmil) |
| Termination | Screw |
| Manufacturer | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | - |
| Tab Thickness | 0.375" (9.53mm) |
| Terminal Type | Lug, Grounding |
| Contact Finish | - |
| Terminal Style | Single Stud Hole |
| Contact Material | Copper Alloy |
| Length - Overall | 3.880" (98.55mm) |
| Diameter - Ring ID | 0.560" (14.22mm) |
| Base Product Number | PNL-1 |
| Width - Outer Edges | 1.750" (44.45mm) |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
