Step1: Product

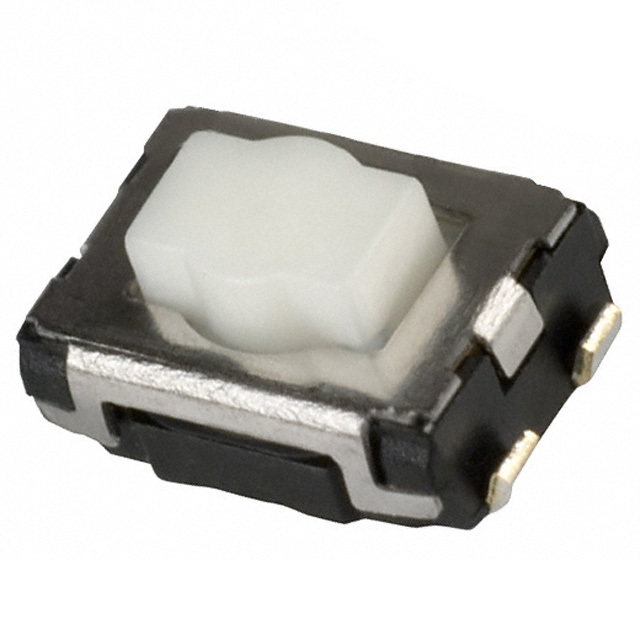

Panasonic Industry EVQ-P2002W
Images are for reference only
Manufacturer
Manufacturer No
EVQ-P2002W
Quantity
10
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SWITCH TACTILE SPST-NO 0.02A 15V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
Payment
Delivery
Mfr
Panasonic Industry
Series
EVQP2
Circuit
SPST-NO
Outline
4.70mm x 3.50mm
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Illumination
Non-Illuminated
Actuator Type
Rectangular Button
Mounting Type
Surface Mount
Switch Travel
0.25mm
Mechanical Life
1,000,000 Cycles
Operating Force
100gf
Switch Function
Off-Mom
Actuator Material
-
Termination Style
J Lead
Ingress Protection
-
Base Product Number
EVQ-P2
Actuator Orientation
Top Actuated
Operating Temperature
-40°C ~ 85°C
Contact Rating @ Voltage
0.02A @ 15VDC
Illumination Type, Color
-
Actuator Length, Right Angle
-
Illumination Voltage (Nominal)
-
Actuator Height off PCB, Vertical
2.50mm
| Attribute | Value |
|---|---|
| Mfr | Panasonic Industry |
| Series | EVQP2 |
| Circuit | SPST-NO |
| Outline | 4.70mm x 3.50mm |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Illumination | Non-Illuminated |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount |
| Switch Travel | 0.25mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 100gf |
| Switch Function | Off-Mom |
| Actuator Material | - |
| Termination Style | J Lead |
| Ingress Protection | - |
| Base Product Number | EVQ-P2 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | 2.50mm |
