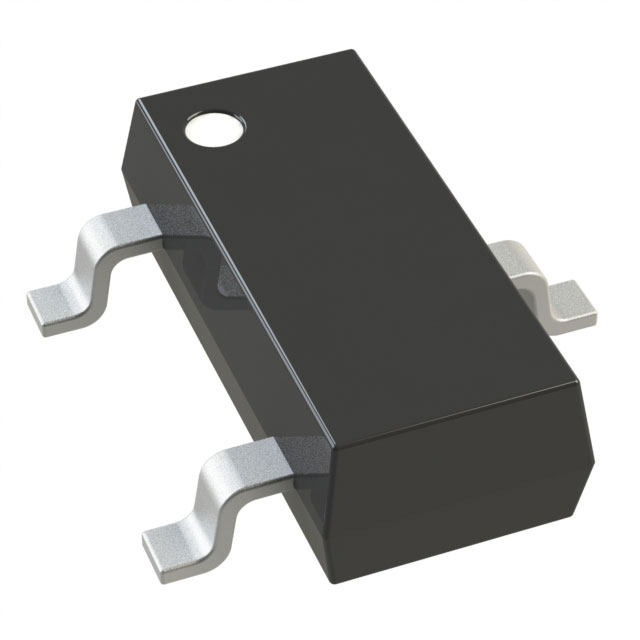

Panasonic Industry 2SB09700RL
Images are for reference only
Manufacturer
Manufacturer No
2SB09700RL
Package
TO-236-3, SC-59, SOT-23-3
Packaging
Tape & Reel (TR)
Description
TRANS PNP 10V 0.5A MINI3-G1
Detailed Description
Bipolar (BJT) Transistor PNP 10 V 500 mA 130MHz 200 mW Surface Mount Mini3-G1
Datasheet
Payment
Delivery
Mfr
Panasonic Industry
Series
-
Packaging
Tape & Reel (TR)
Power - Max
200 mW
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Transistor Type
PNP
Base Product Number
2SB0970
Operating Temperature
150°C (TJ)
Frequency - Transition
130MHz
Supplier Device Package
Mini3-G1
Vce Saturation (Max) @ Ib, Ic
300mV @ 8mA, 400mA
Current - Collector (Ic) (Max)
500 mA
Current - Collector Cutoff (Max)
100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce
130 @ 500mA, 2V
Voltage - Collector Emitter Breakdown (Max)
10 V
| Attribute | Value |
|---|---|
| Mfr | Panasonic Industry |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Power - Max | 200 mW |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Transistor Type | PNP |
| Base Product Number | 2SB0970 |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 130MHz |
| Supplier Device Package | Mini3-G1 |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 8mA, 400mA |
| Current - Collector (Ic) (Max) | 500 mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 130 @ 500mA, 2V |
| Voltage - Collector Emitter Breakdown (Max) | 10 V |
