Step1: Product

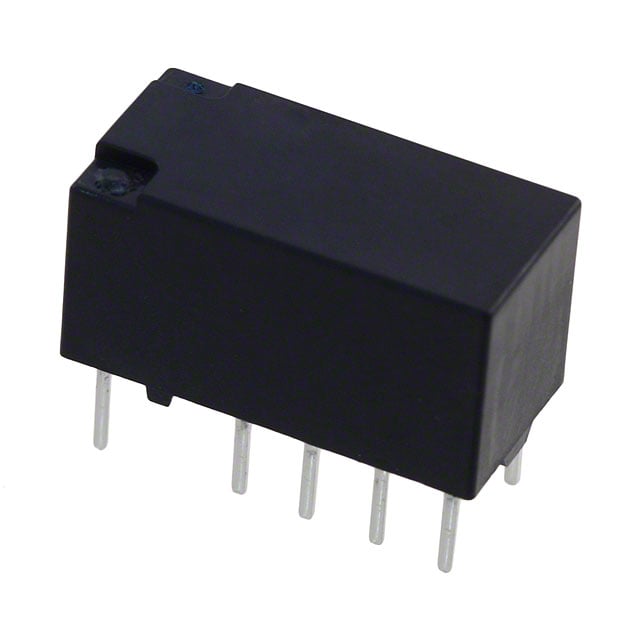

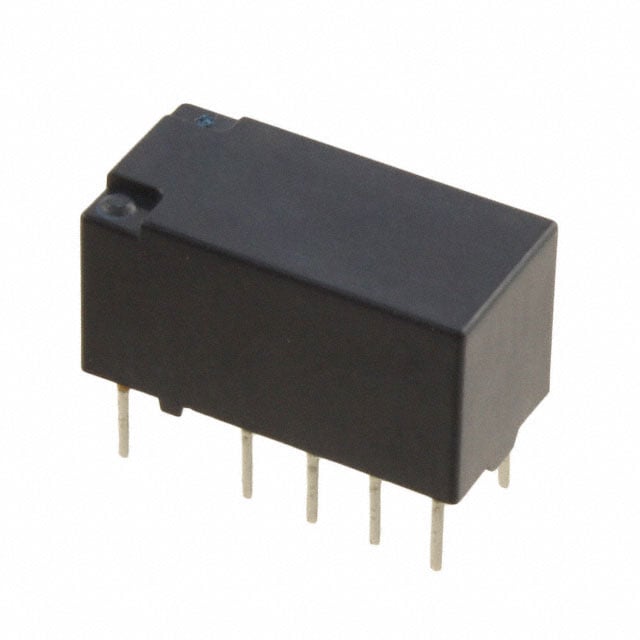

Panasonic Electric Works TX2-24V
Images are for reference only
Manufacturer
Manufacturer No
TX2-24V
Quantity
9,896
Availability
In Stock
Packaging
Tube
Description
RELAY TELECOM DPDT 2A 24V
Detailed Description
Telecom Relay DPDT (2 Form C) Through Hole
Datasheet
Payment
Delivery
Grade
-
Series
TX
Features
-
Coil Type
Non Latching
Packaging
Tube
Relay Type
Telecom
Seal Rating
Sealed - Fully
Coil Current
5.8 mA
Coil Voltage
24VDC
Contact Form
DPDT (2 Form C)
Manufacturer
Panasonic Electric Works
Operate Time
4 ms
Release Time
4 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
BSI, cURus
Coil Insulation
-
Coil Resistance
4.11 kOhms
Contact Material
Silver (Ag), Gold (Au)
Switching Voltage
220VDC - Max
Termination Style
PC Pin
Base Product Number
TX2-24
Load - Max Switching
60W
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
2 A
| Attribute | Value |
|---|---|
| Grade | - |
| Series | TX |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | Telecom |
| Seal Rating | Sealed - Fully |
| Coil Current | 5.8 mA |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Manufacturer | Panasonic Electric Works |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | BSI, cURus |
| Coil Insulation | - |
| Coil Resistance | 4.11 kOhms |
| Contact Material | Silver (Ag), Gold (Au) |
| Switching Voltage | 220VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | TX2-24 |
| Load - Max Switching | 60W |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 2 A |
