Step1: Product

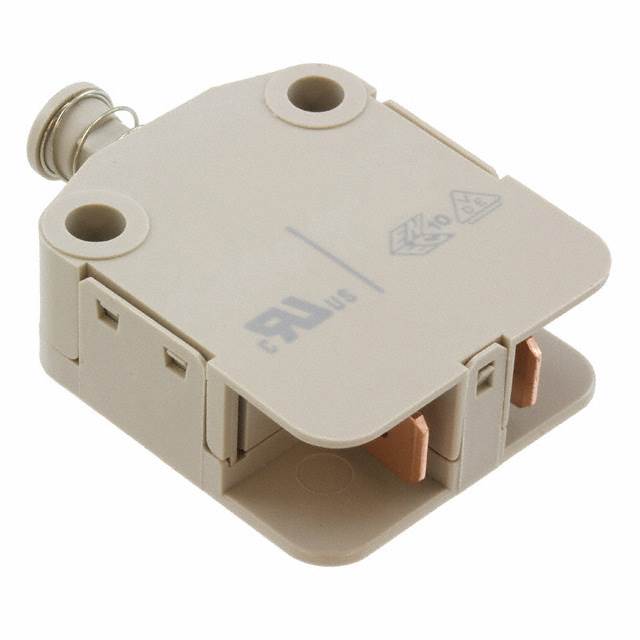

Panasonic Electric Works AV16653F
Images are for reference only
Manufacturer
Manufacturer No
AV16653F
Packaging
Bulk
Description
SWITCH SNAP ACT SPST-NO 10A 125V
Detailed Description
Switch SPST-NO Chassis Mount
Datasheet
Payment
Delivery
Series
AV1
Circuit
SPST-NO
Features
-
Packaging
Bulk
Pretravel
-
Overtravel
0.083" (2.1mm)
Manufacturer
Panasonic Electric Works
Actuator Type
Round (Pin Plunger)
Mounting Type
Chassis Mount
Release Force
-
Electrical Life
100,000 Cycles
Mechanical Life
1,000,000 Cycles
Operating Force
500gf
Switch Function
Off-Mom
Termination Style
Quick Connect - 0.250" (6.3mm)
Ingress Protection
IP40
Operating Position
0.500" (12.7mm)
Base Product Number
AV166
Differential Travel
-
Voltage Rating - AC
125 V
Current Rating (Amps)
10A (AC)
Operating Temperature
-25°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | AV1 |
| Circuit | SPST-NO |
| Features | - |
| Packaging | Bulk |
| Pretravel | - |
| Overtravel | 0.083" (2.1mm) |
| Manufacturer | Panasonic Electric Works |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Release Force | - |
| Electrical Life | 100,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 500gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Ingress Protection | IP40 |
| Operating Position | 0.500" (12.7mm) |
| Base Product Number | AV166 |
| Differential Travel | - |
| Voltage Rating - AC | 125 V |
| Current Rating (Amps) | 10A (AC) |
| Operating Temperature | -25°C ~ 85°C |
