Step1: Product

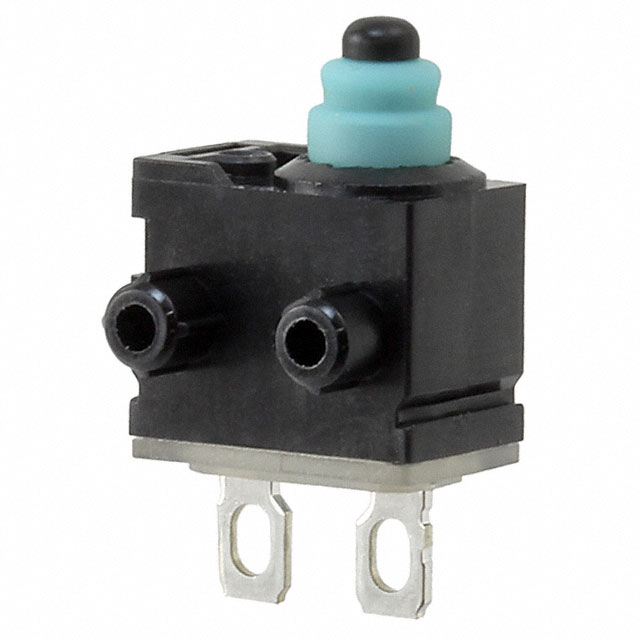

Panasonic Electric Works ASQMR16420A
Images are for reference only
Manufacturer
Manufacturer No
ASQMR16420A
Packaging
Tray
Description
SWITCH SNAP ACT FAIL DETECT 16V
Detailed Description
Switch SPST-NC Chassis Mount
Datasheet
Payment
Delivery
Series
ASQMR1
Circuit
SPST-NC
Features
-
Packaging
Tray
Pretravel
-
Overtravel
0.065" (1.7mm)
Manufacturer
Panasonic Electric Works
Actuator Type
Round (Pin Plunger)
Mounting Type
Chassis Mount
Release Force
-
Electrical Life
200,000 Cycles
Mechanical Life
-
Operating Force
122gf
Switch Function
On-Mom
Termination Style
Solder Lug
Ingress Protection
IP67 - Dust Tight, Waterproof
Operating Position
0.280" (7.1mm)
Base Product Number
ASQMR16
Differential Travel
-
Voltage Rating - DC
16 V
Current Rating (Amps)
1mA (DC)
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | ASQMR1 |
| Circuit | SPST-NC |
| Features | - |
| Packaging | Tray |
| Pretravel | - |
| Overtravel | 0.065" (1.7mm) |
| Manufacturer | Panasonic Electric Works |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Release Force | - |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | - |
| Operating Force | 122gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Position | 0.280" (7.1mm) |
| Base Product Number | ASQMR16 |
| Differential Travel | - |
| Voltage Rating - DC | 16 V |
| Current Rating (Amps) | 1mA (DC) |
| Operating Temperature | -40°C ~ 85°C |
