Step1: Product

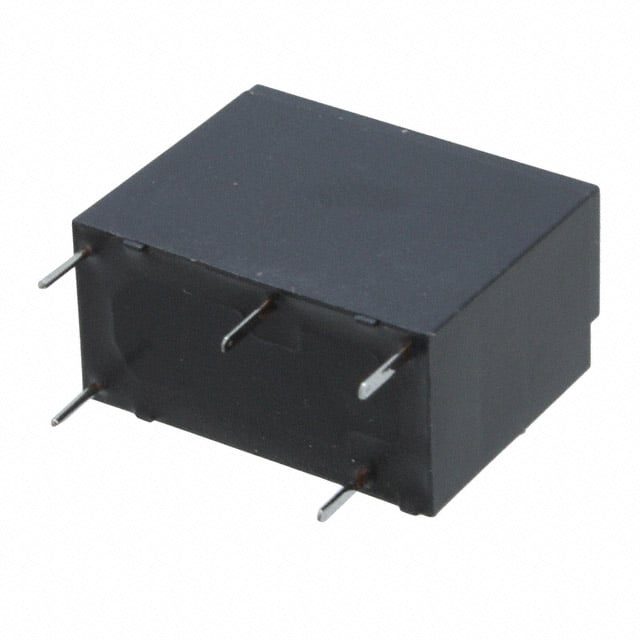

Panasonic Electric Works ALQ112
Images are for reference only
Manufacturer
Manufacturer No
ALQ112
Quantity
6,811
Availability
In Stock
Packaging
Box
Description
RELAY GEN PURPOSE SPDT 10A 12V
Detailed Description
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Datasheet
Payment
Delivery
Mfr
Panasonic Electric Works
Grade
-
Series
ALQ
Features
-
Coil Type
Non Latching
Packaging
Box
Relay Type
General Purpose
Seal Rating
-
Coil Current
33.3 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Operate Time
20 ms
Release Time
20 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
CQC, cURuus, VDE
Coil Insulation
Class B
Coil Resistance
360 Ohms
Contact Material
Silver Nickel (AgNi)
Switching Voltage
250VAC, 30VDC - Max
Termination Style
PC Pin
Base Product Number
ALQ11
Load - Max Switching
1250VA, 150W
Must Operate Voltage
9 VDC
Must Release Voltage
0.6 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
5 A
| Attribute | Value |
|---|---|
| Mfr | Panasonic Electric Works |
| Grade | - |
| Series | ALQ |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 33.3 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | CQC, cURuus, VDE |
| Coil Insulation | Class B |
| Coil Resistance | 360 Ohms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 250VAC, 30VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | ALQ11 |
| Load - Max Switching | 1250VA, 150W |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 5 A |
