Step1: Product

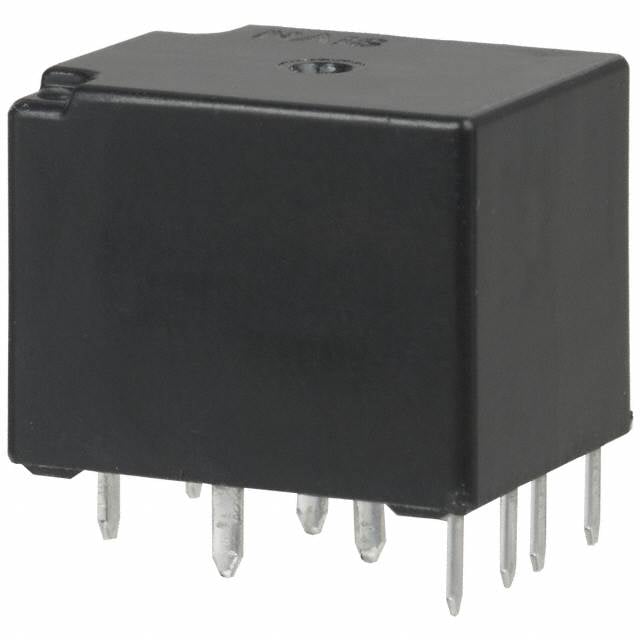

Panasonic Electric Works ACT512
Images are for reference only
Manufacturer
Manufacturer No
ACT512
Quantity
76
Availability
In Stock
Packaging
Tube
Description
RELAY AUTOMOTIVE SPDTX2 20A 12V
Detailed Description
Automotive Relay SPDT (1 Form C) x 2 12VDC Coil Through Hole
Datasheet
Payment
Delivery
Series
ACT
Features
-
Coil Type
Non Latching
Packaging
Tube
Coil Power
800mW
Coil Current
66.7 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C) x 2
Manufacturer
Panasonic Electric Works
Operate Time
10 ms
Release Time
10 ms
Mounting Type
Through Hole
Coil Resistance
180 Ohms
Contact Material
Silver Alloy, Cadmium Free
Switching Voltage
14VDC - Nom
Termination Style
PC Pin
Base Product Number
ACT51
Must Operate Voltage
7.2 VDC
Must Release Voltage
1 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
20 A
| Attribute | Value |
|---|---|
| Series | ACT |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Coil Power | 800mW |
| Coil Current | 66.7 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) x 2 |
| Manufacturer | Panasonic Electric Works |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 180 Ohms |
| Contact Material | Silver Alloy, Cadmium Free |
| Switching Voltage | 14VDC - Nom |
| Termination Style | PC Pin |
| Base Product Number | ACT51 |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 20 A |
