Step1: Product

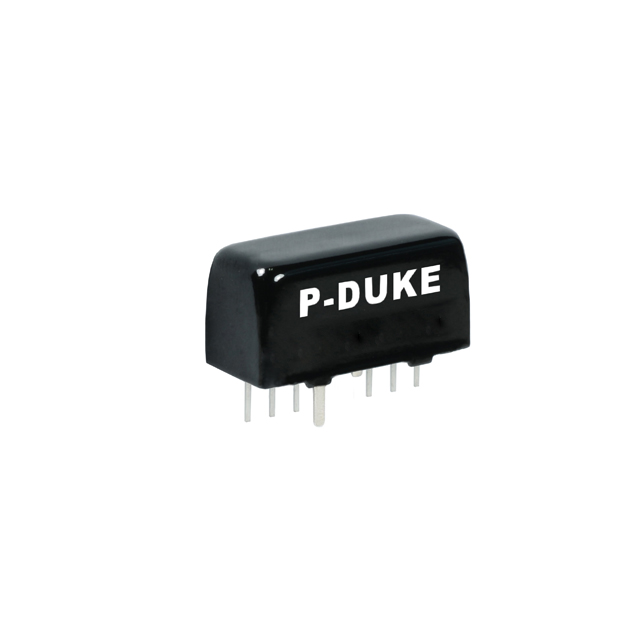

P-DUKE Technology RDL03-110S05W
Images are for reference only
Manufacturer
Manufacturer No
RDL03-110S05W
Quantity
10
Availability
In Stock
Package
12-SIP Module, 10 Leads
Packaging
Tube
Description
DC DC CONVERTER 5V 3W
Detailed Description
Isolated Module DC DC Converter 1 Output 5V 600mA 43V - 160V Input
Datasheet
Payment
Delivery
Mfr
P-DUKE Technology
Type
Isolated Module
Series
RDL03W (3W)
Features
Adjustable Output, Remote On/Off
Packaging
Tube
Efficiency
80%
Applications
ITE (Commercial), Railway
Mounting Type
Through Hole
Power (Watts)
3 W
Package / Case
12-SIP Module, 10 Leads
Approval Agency
CB, CE, cURus
Standard Number
62368-1
Control Features
-
Size / Dimension
0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Number of Outputs
1
Voltage - Output 1
5V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Isolation
3 kV
Operating Temperature
-40°C ~ 100°C (With Derating)
Voltage - Input (Max)
160V
Voltage - Input (Min)
43V
Current - Output (Max)
600mA
Supplier Device Package
-
| Attribute | Value |
|---|---|
| Mfr | P-DUKE Technology |
| Type | Isolated Module |
| Series | RDL03W (3W) |
| Features | Adjustable Output, Remote On/Off |
| Packaging | Tube |
| Efficiency | 80% |
| Applications | ITE (Commercial), Railway |
| Mounting Type | Through Hole |
| Power (Watts) | 3 W |
| Package / Case | 12-SIP Module, 10 Leads |
| Approval Agency | CB, CE, cURus |
| Standard Number | 62368-1 |
| Control Features | - |
| Size / Dimension | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Isolation | 3 kV |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Voltage - Input (Max) | 160V |
| Voltage - Input (Min) | 43V |
| Current - Output (Max) | 600mA |
| Supplier Device Package | - |
