Step1: Product
Oupiin 2345-C24TD2T

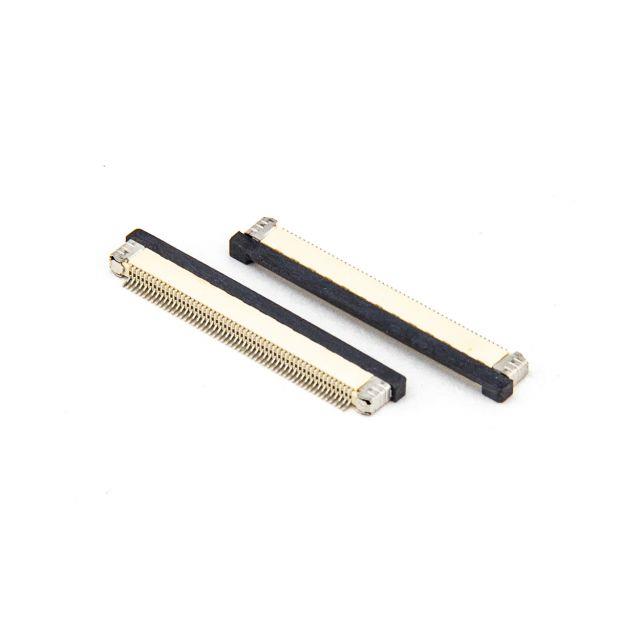

Images are for reference only
Manufacturer
Manufacturer No
2345-C24TD2T
Packaging
Bulk
Description
FFC/FPC SOCKET, .5MM PITCH, 24 P
Detailed Description
24 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
2345-C
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Bulk
Termination
Solder
Manufacturer
Oupiin
Housing Color
Natural
Mating Cycles
-
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP)
Actuator Material
Liquid Crystal Polymer (LCP)
FFC, FCB Thickness
0.30mm
Height Above Board
0.079" (2.00mm)
Number of Positions
24
Current Rating (Amps)
0.4A
Operating Temperature
-45°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
100.0µin (2.54µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | 2345-C |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Bulk |
| Termination | Solder |
| Manufacturer | Oupiin |
| Housing Color | Natural |
| Mating Cycles | - |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Number of Positions | 24 |
| Current Rating (Amps) | 0.4A |
| Operating Temperature | -45°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Material Flammability Rating | UL94 V-0 |
