Step1: Product

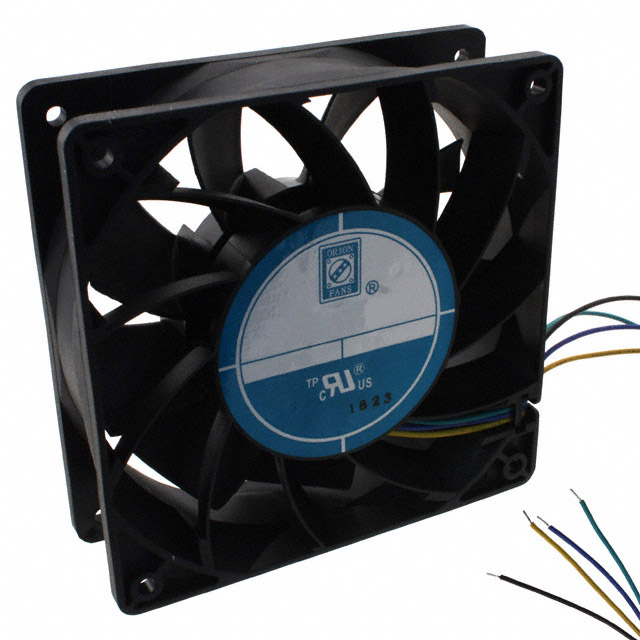

Orion Fans OD1238-12HBVXC10A
Images are for reference only
Manufacturer
Manufacturer No
OD1238-12HBVXC10A
Packaging
Box
Description
FAN AXIAL 120X38MM 12VDC WIRE
Detailed Description
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 226.0 CFM (6.33m³/min) 4 Wire Leads
Datasheet
Payment
Delivery
Mfr
Orion Fans
RPM
5000 RPM
Noise
65.0dB
Width
38.00mm
Series
OD1238 VA
Weight
-
Air Flow
226.0 CFM (6.33m³/min)
Fan Type
Tubeaxial
Features
Auto Restart, PWM Control, Speed Sensor (Tach)
Packaging
Box
Termination
4 Wire Leads
Bearing Type
Ball
Power (Watts)
43.2 W
Voltage Range
6 ~ 14VDC
Approval Agency
cURus, TUV
Static Pressure
1.350 in H2O (336.3 Pa)
Voltage - Rated
12VDC
Lifetime @ Temp.
65000 Hrs @ 45°C
Material - Blade
Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame
Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Size / Dimension
Square - 120mm L x 120mm H
Ingress Protection
-
Base Product Number
OD1238
Current Rating (Amps)
3.6A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Orion Fans |
| RPM | 5000 RPM |
| Noise | 65.0dB |
| Width | 38.00mm |
| Series | OD1238 VA |
| Weight | - |
| Air Flow | 226.0 CFM (6.33m³/min) |
| Fan Type | Tubeaxial |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Termination | 4 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 43.2 W |
| Voltage Range | 6 ~ 14VDC |
| Approval Agency | cURus, TUV |
| Static Pressure | 1.350 in H2O (336.3 Pa) |
| Voltage - Rated | 12VDC |
| Lifetime @ Temp. | 65000 Hrs @ 45°C |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Size / Dimension | Square - 120mm L x 120mm H |
| Ingress Protection | - |
| Base Product Number | OD1238 |
| Current Rating (Amps) | 3.6A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
