Step1: Product

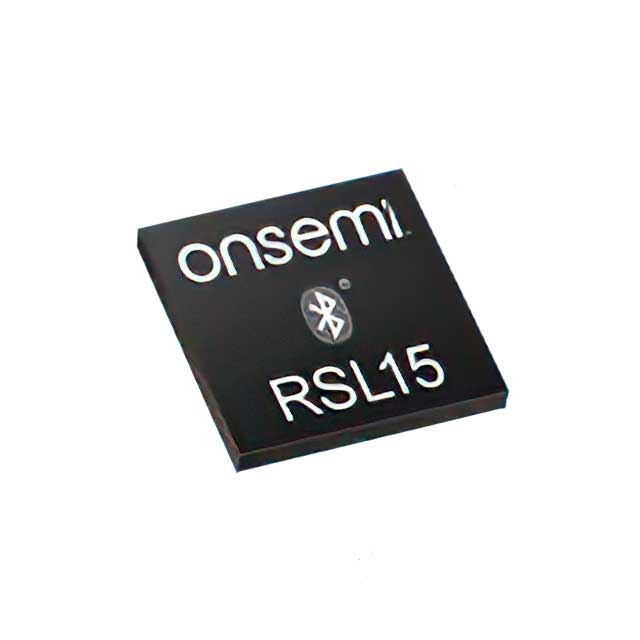

onsemi NCH-RSL15-284-101Q40-ACG
Images are for reference only
Manufacturer
Manufacturer No
NCH-RSL15-284-101Q40-ACG
Quantity
17
Availability
In Stock
Package
40-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC RF TXRX+MCU BLE 40QFN
Detailed Description
IC RF TxRx + MCU Bluetooth Bluetooth v5.2 2.4GHz 40-VFQFN Exposed Pad
Datasheet
Payment
Delivery
Mfr
onsemi
GPIO
15
Type
TxRx + MCU
Series
RSL15
Protocol
Bluetooth v5.2
Frequency
2.4GHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Modulation
4-FSK, GFSK, MSK, O-QPSK
Memory Size
284kB Flash, 80kB RAM
Sensitivity
-102dBm
Mounting Type
Surface Mount
Package / Case
40-VFQFN Exposed Pad
Power - Output
6dBm
Data Rate (Max)
2Mbps
Voltage - Supply
1.2V ~ 3.6V
Serial Interfaces
I2C, PCM, PWM, SPI, UART
RF Family/Standard
Bluetooth
Base Product Number
NCH-RSL15
Current - Receiving
2.7mA ~ 6.7mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
4.3mA ~ 24.1mA
Supplier Device Package
40-QFN (5x5)
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| GPIO | 15 |
| Type | TxRx + MCU |
| Series | RSL15 |
| Protocol | Bluetooth v5.2 |
| Frequency | 2.4GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Modulation | 4-FSK, GFSK, MSK, O-QPSK |
| Memory Size | 284kB Flash, 80kB RAM |
| Sensitivity | -102dBm |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Power - Output | 6dBm |
| Data Rate (Max) | 2Mbps |
| Voltage - Supply | 1.2V ~ 3.6V |
| Serial Interfaces | I2C, PCM, PWM, SPI, UART |
| RF Family/Standard | Bluetooth |
| Base Product Number | NCH-RSL15 |
| Current - Receiving | 2.7mA ~ 6.7mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 4.3mA ~ 24.1mA |
| Supplier Device Package | 40-QFN (5x5) |
