Step1: Product
onsemi HGTD1N120BNS9A

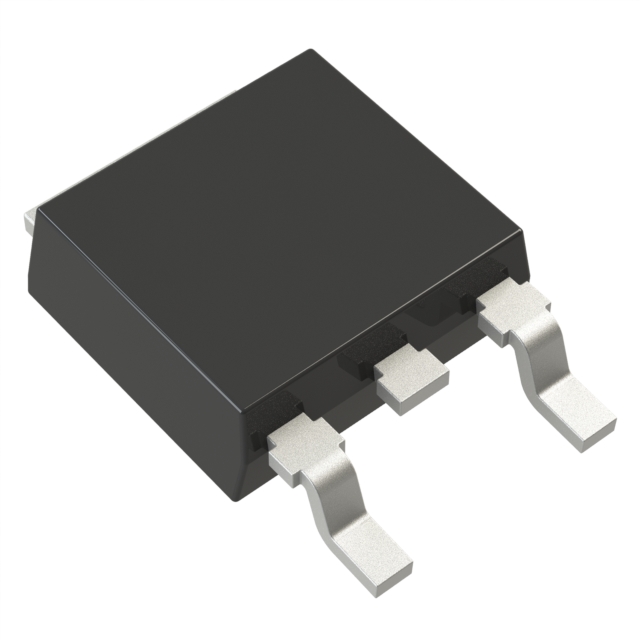

Images are for reference only
Manufacturer
Manufacturer No
HGTD1N120BNS9A
Date Code
2433
Quantity
12,810
Availability
In Stock
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IGBT NPT 1200V 5.3A TO-252AA
Detailed Description
IGBT NPT 1200 V 5.3 A 60 W Surface Mount TO-252AA
Datasheet
Payment
Delivery
Series
-
IGBT Type
NPT
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
Standard
Gate Charge
14 nC
Power - Max
60 W
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Test Condition
960V, 1A, 82Ohm, 15V
Switching Energy
70µJ (on), 90µJ (off)
Base Product Number
HGTD1N120
Td (on/off) @ 25°C
15ns/67ns
Operating Temperature
-55°C ~ 150°C (TJ)
Supplier Device Package
TO-252AA
Vce(on) (Max) @ Vge, Ic
2.9V @ 15V, 1A
Current - Collector (Ic) (Max)
5.3 A
Current - Collector Pulsed (Icm)
6 A
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Series | - |
| IGBT Type | NPT |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | Standard |
| Gate Charge | 14 nC |
| Power - Max | 60 W |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Test Condition | 960V, 1A, 82Ohm, 15V |
| Switching Energy | 70µJ (on), 90µJ (off) |
| Base Product Number | HGTD1N120 |
| Td (on/off) @ 25°C | 15ns/67ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | TO-252AA |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 1A |
| Current - Collector (Ic) (Max) | 5.3 A |
| Current - Collector Pulsed (Icm) | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
