Step1: Product

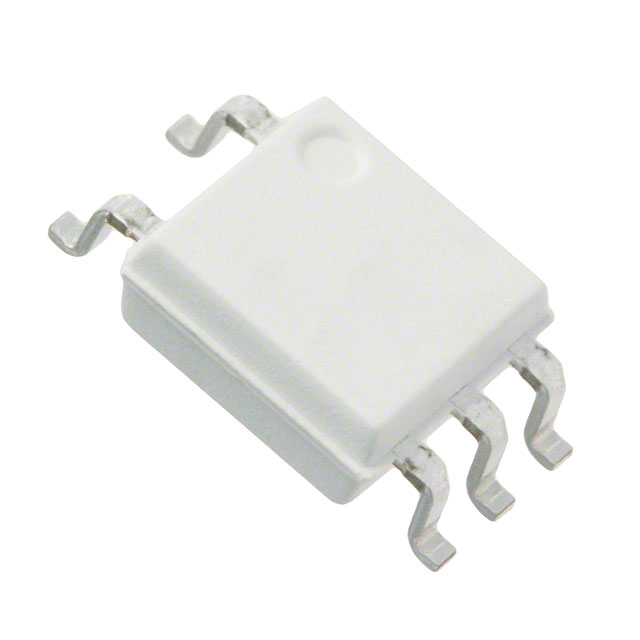

onsemi FODM611R2
Images are for reference only
Manufacturer
Manufacturer No
FODM611R2
Date Code
2235
Quantity
5
Availability
In Stock
Package
6-SOIC (0.173", 4.40mm Width), 5 Leads
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
OPTOISO 3.75KV OPEN COLL 5-MF
Detailed Description
Logic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 3750Vrms 1 Channel 20kV/µs CMTI 5-Mini-Flat
Datasheet
Payment
Delivery
Series
-
Data Rate
10Mbps
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
DC
Output Type
Open Collector, Schottky Clamped
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.173", 4.40mm Width), 5 Leads
Voltage - Supply
4.5V ~ 5.5V
Number of Channels
1
Base Product Number
FODM611
Voltage - Isolation
3750Vrms
Operating Temperature
-40°C ~ 85°C
Inputs - Side 1/Side 2
1/0
Rise / Fall Time (Typ)
20ns, 10ns
Supplier Device Package
5-Mini-Flat
Current - Output / Channel
50 mA
Voltage - Forward (Vf) (Typ)
1.45V
Current - DC Forward (If) (Max)
50mA
Propagation Delay tpLH / tpHL (Max)
100ns, 100ns
Common Mode Transient Immunity (Min)
20kV/µs
| Attribute | Value |
|---|---|
| Series | - |
| Data Rate | 10Mbps |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Channels | 1 |
| Base Product Number | FODM611 |
| Voltage - Isolation | 3750Vrms |
| Operating Temperature | -40°C ~ 85°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Supplier Device Package | 5-Mini-Flat |
| Current - Output / Channel | 50 mA |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 50mA |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Common Mode Transient Immunity (Min) | 20kV/µs |
