Step1: Product

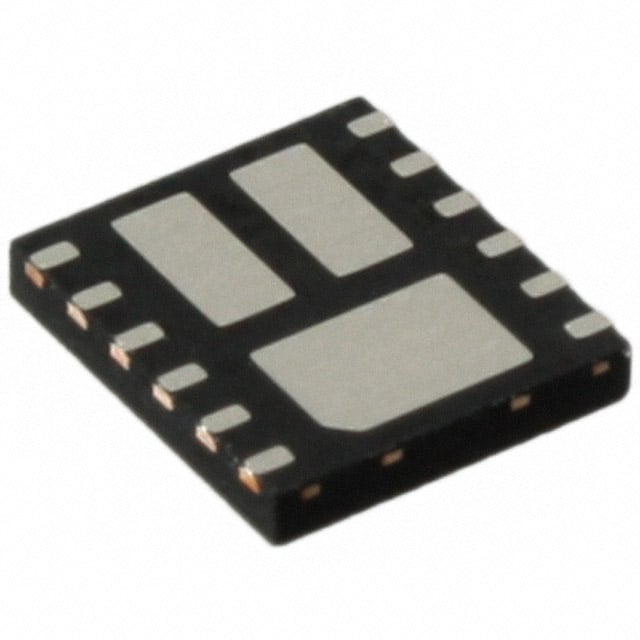

onsemi FDMQ8403
Images are for reference only
Series
GreenBridge™ PowerTrench®
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
FET Feature
-
Power - Max
1.9W
Manufacturer
onsemi
Configuration
4 N-Channel (Full Bridge)
Mounting Type
Surface Mount
Package / Case
12-WDFN Exposed Pad
Vgs(th) (Max) @ Id
4V @ 250µA
Base Product Number
FDMQ84
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
110mOhm @ 3A, 10V
Supplier Device Package
12-MLP (5x4.5)
Gate Charge (Qg) (Max) @ Vgs
5nC @ 10V
Drain to Source Voltage (Vdss)
100V
Input Capacitance (Ciss) (Max) @ Vds
215pF @ 15V
Current - Continuous Drain (Id) @ 25°C
3.1A
| Attribute | Value |
|---|---|
| Series | GreenBridge™ PowerTrench® |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Power - Max | 1.9W |
| Manufacturer | onsemi |
| Configuration | 4 N-Channel (Full Bridge) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Base Product Number | FDMQ84 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 3A, 10V |
| Supplier Device Package | 12-MLP (5x4.5) |
| Gate Charge (Qg) (Max) @ Vgs | 5nC @ 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance (Ciss) (Max) @ Vds | 215pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 3.1A |
