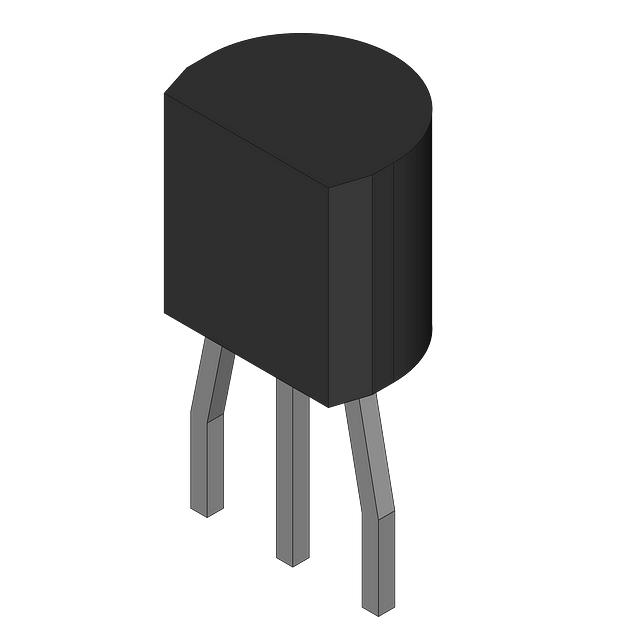

onsemi 2N5060RL1
Series
-
SCR Type
Sensitive Gate
Packaging
Bulk
Manufacturer
onsemi
Mounting Type
Through Hole
Package / Case
TO-226-3, TO-92-3 Long Body, Formed Leads
Voltage - Off State
30 V
Supplier Device Package
TO-92 (TO-226)
Current - Hold (Ih) (Max)
5 mA
Current - Gate Trigger (Igt) (Max)
200 µA
Current - On State (It (AV)) (Max)
510 mA
Voltage - Gate Trigger (Vgt) (Max)
800 mV
Current - On State (It (RMS)) (Max)
800 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)
10A @ 60Hz
| Attribute | Value |
|---|---|
| Series | - |
| SCR Type | Sensitive Gate |
| Packaging | Bulk |
| Manufacturer | onsemi |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body, Formed Leads |
| Voltage - Off State | 30 V |
| Supplier Device Package | TO-92 (TO-226) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - On State (It (AV)) (Max) | 510 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - On State (It (RMS)) (Max) | 800 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A @ 60Hz |
