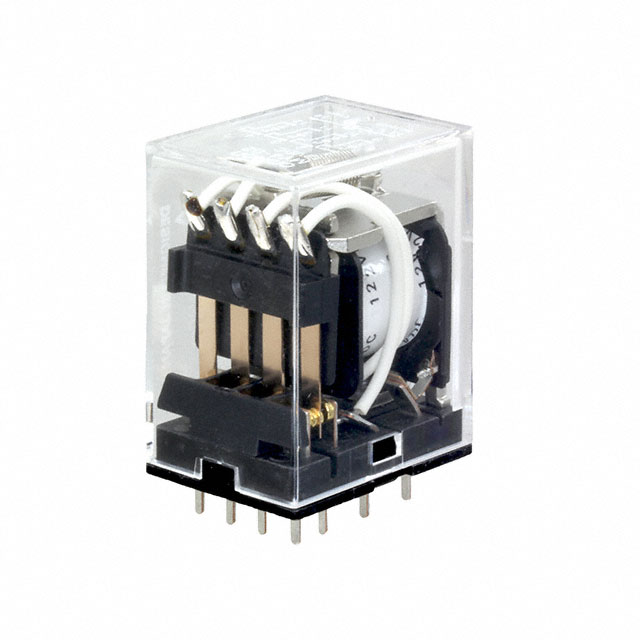

Omron Automation and Safety MY4-02-DC12
Images are for reference only
Manufacturer
Manufacturer No
MY4-02-DC12
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
RELAY GEN PURPOSE 4PDT 3A 12V
Detailed Description
General Purpose Relay 4PDT (4 Form C) 12VDC Coil Through Hole
Datasheet
Payment
Delivery
Mfr
Omron Automation and Safety
Grade
-
Series
MY
Features
-
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
-
Coil Current
72.7 mA
Coil Voltage
12VDC
Contact Form
4PDT (4 Form C)
Operate Time
20 ms
Release Time
20 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
CE, CSA, UR, VDE
Coil Insulation
-
Coil Resistance
165 Ohms
Contact Material
Silver (Ag), Gold (Au)
Switching Voltage
250VAC, 125VDC - Max
Termination Style
PC Pin
Base Product Number
MY4-02
Load - Max Switching
750VA, 375W
Must Operate Voltage
9.6 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-55°C ~ 70°C
Contact Rating (Current)
3 A
| Attribute | Value |
|---|---|
| Mfr | Omron Automation and Safety |
| Grade | - |
| Series | MY |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 72.7 mA |
| Coil Voltage | 12VDC |
| Contact Form | 4PDT (4 Form C) |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | CE, CSA, UR, VDE |
| Coil Insulation | - |
| Coil Resistance | 165 Ohms |
| Contact Material | Silver (Ag), Gold (Au) |
| Switching Voltage | 250VAC, 125VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | MY4-02 |
| Load - Max Switching | 750VA, 375W |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -55°C ~ 70°C |
| Contact Rating (Current) | 3 A |
