Step1: Product
Omnitek Cable Inc. OMNI-047S-01

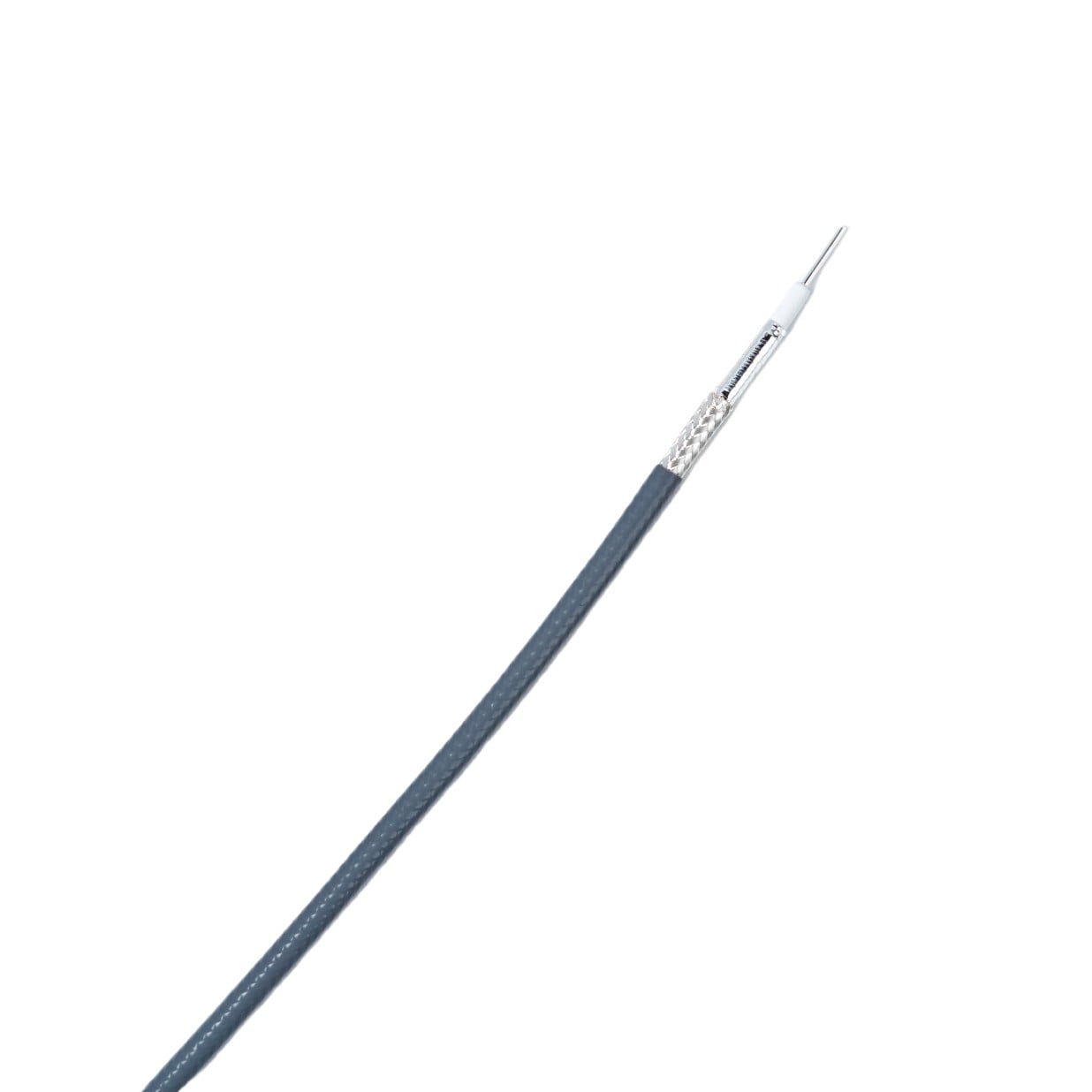

Images are for reference only
Manufacturer
Manufacturer No
OMNI-047S-01
Packaging
Strip
Description
047 Microwave CoaxCable 70%VP Ft
Detailed Description
Micro Coaxial Cable 29 AWG 1.0' (0.30m) 50 Ohms
Datasheet
Payment
Delivery
Length
1.0' (0.30m)
Series
-
Impedance
50 Ohms
Packaging
Strip
Cable Type
Micro Coaxial
Wire Gauge
29 AWG
Shield Type
Foil, Braid
Jacket Color
Blue
Manufacturer
Omnitek Cable Inc.
Shield Coverage
90%
Shield Material
Copper, Silver Coated
Conductor Strand
Solid
Conductor Material
Copper, Silver Coated
Dielectric Diameter
0.036" (0.91mm)
Dielectric Material
Fluorinated Ethylene Propylene (FEP)
Operating Temperature
-55°C ~ 125°C
Jacket (Insulation) Diameter
0.056" (1.42mm)
Jacket (Insulation) Material
Fluorinated Ethylene-Propylene (FEP)
VoP, Velocity of Propagation
70.0
| Attribute | Value |
|---|---|
| Length | 1.0' (0.30m) |
| Series | - |
| Impedance | 50 Ohms |
| Packaging | Strip |
| Cable Type | Micro Coaxial |
| Wire Gauge | 29 AWG |
| Shield Type | Foil, Braid |
| Jacket Color | Blue |
| Manufacturer | Omnitek Cable Inc. |
| Shield Coverage | 90% |
| Shield Material | Copper, Silver Coated |
| Conductor Strand | Solid |
| Conductor Material | Copper, Silver Coated |
| Dielectric Diameter | 0.036" (0.91mm) |
| Dielectric Material | Fluorinated Ethylene Propylene (FEP) |
| Operating Temperature | -55°C ~ 125°C |
| Jacket (Insulation) Diameter | 0.056" (1.42mm) |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| VoP, Velocity of Propagation | 70.0 |
