Step1: Product

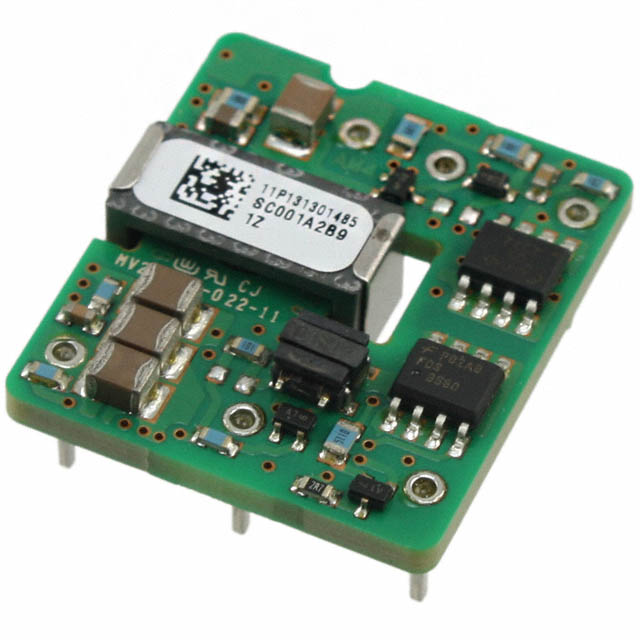

OmniOn Power™ SC001A2B91Z
Images are for reference only
Manufacturer
Manufacturer No
SC001A2B91Z
Availability
In Stock
Package
6-DIP Module
Packaging
Bulk
Description
DC DC CONVERTER 12V 15W
Detailed Description
Isolated Module DC DC Converter 1 Output 12V 1.2A 18V - 36V Input
Datasheet
Payment
Delivery
Mfr
OmniOn Power™
Type
Isolated Module
Series
SC001
Features
Remote On/Off, OCP, OVP, UVLO
Packaging
Bulk
Efficiency
85%
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
15 W
Package / Case
6-DIP Module
Control Features
Enable, Active Low
Size / Dimension
1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm)
Number of Outputs
1
Voltage - Output 1
12V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Isolation
2.25 kV
Operating Temperature
-40°C ~ 85°C
Voltage - Input (Max)
36V
Voltage - Input (Min)
18V
Current - Output (Max)
1.2A
| Attribute | Value |
|---|---|
| Mfr | OmniOn Power™ |
| Type | Isolated Module |
| Series | SC001 |
| Features | Remote On/Off, OCP, OVP, UVLO |
| Packaging | Bulk |
| Efficiency | 85% |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 15 W |
| Package / Case | 6-DIP Module |
| Control Features | Enable, Active Low |
| Size / Dimension | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Isolation | 2.25 kV |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 1.2A |
