Step1: Product

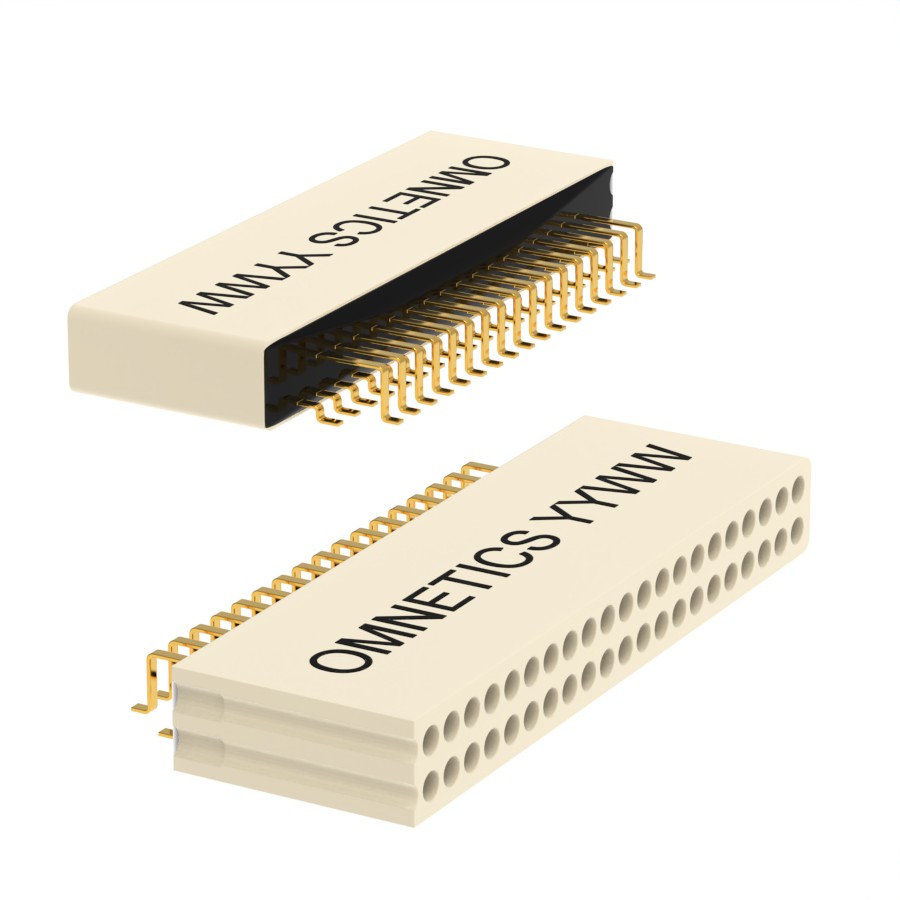

Omnetics A79032-001
Images are for reference only
Manufacturer
Manufacturer No
A79032-001
Packaging
Bulk
Description
DUAL ROW NANO STRIP 36 PIN CONTA
Detailed Description
Connector Header Surface Mount, Right Angle 36 position 0.025" (0.64mm)
Datasheet
Payment
Delivery
Mfr
Omnetics
Style
Board to Cable/Wire
Series
Polarized Nano
Features
-
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.025" (0.64mm)
Voltage Rating
-
Contact Material
Beryllium Copper
Insulation Color
Natural
Insulation Height
0.070" (1.78mm)
Ingress Protection
-
Insulation Material
Thermoplastic
Number of Positions
36
Row Spacing - Mating
0.030" (0.76mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
-
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Omnetics |
| Style | Board to Cable/Wire |
| Series | Polarized Nano |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.025" (0.64mm) |
| Voltage Rating | - |
| Contact Material | Beryllium Copper |
| Insulation Color | Natural |
| Insulation Height | 0.070" (1.78mm) |
| Ingress Protection | - |
| Insulation Material | Thermoplastic |
| Number of Positions | 36 |
| Row Spacing - Mating | 0.030" (0.76mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | - |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
